24 Control & Dimming > Infrared Ceiling Sensors
22004

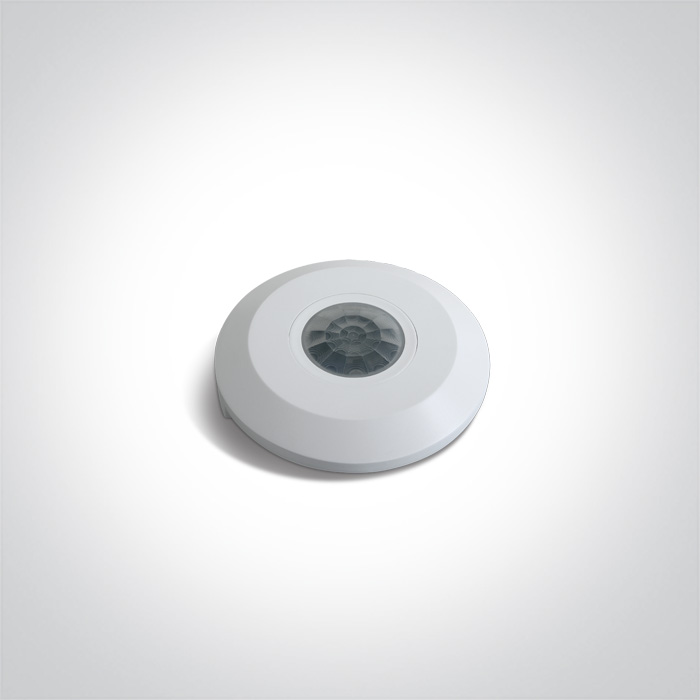

230V 300W (LED) 800W (Incandescent) Ceiling Infrared Motion Sensor.
Hold time and daylight sensor are adjustable via dip switches
Complies with standard EN60669 and any other specific standards.
Hold time and daylight sensor are adjustable via dip switches
Complies with standard EN60669 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
24 Control & Dimming
Family
Infrared Ceiling Sensors
Order Code
22004
Material
Plastic
Shape
Circular
Height
25mm
Diameter
102mm
Surface Ceiling
Yes
Indoor
Yes
Electrical Characteristics
Sensor
Input Voltage
220-240V
Power (Watts)
300W (LED) 800W (Incandescent)
Safety Class
Motion
Yes
Brightness
Yes
Detection Angle
360°
Detection Distance
6m
Time Delay
10sec ± 3sec to 15min 2 min (adjustable)
Installation height
2,2-4m
Packing Info
Box Length
10,7cm
Box Width
3,5cm
Box Height
11cm
Box Weight
0.126kg
Pcs/Carton
50
Carton Length
56cm
Carton Width
22cm
Carton Height
24cm
Carton Weight
6,3Kg
Barcode
5291889056713
HS Code
8536309090
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
