38140AU/W/C

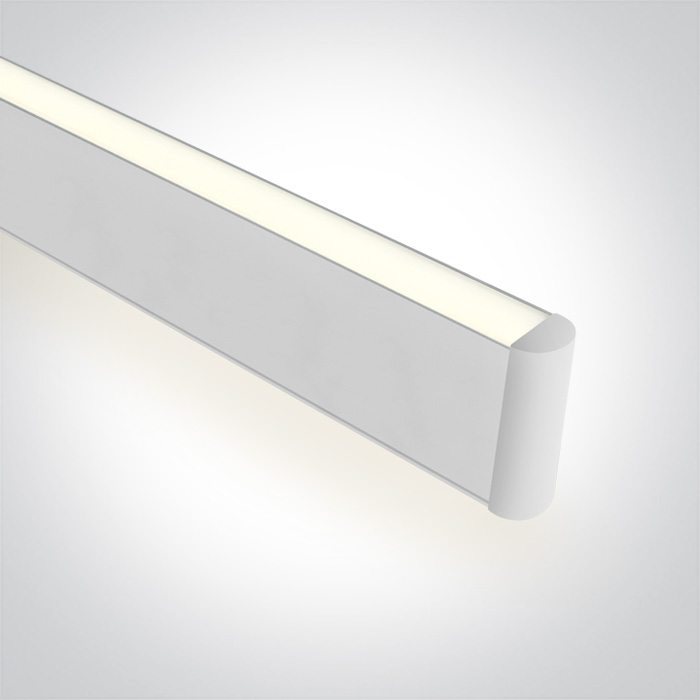

40W suspended linear diffuser with uplight, ideal for offices.
Complete with 900mA driver and 3m suspension kit.
Complies with standard EN60598-1 and any other specific standards.
Complete with 900mA driver and 3m suspension kit.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
11 Office & Kitchen
Family
Up & Down LED Linear Profiles
Order Code
38140AU/W/C
Colour
White
Material
Aluminium
Diffuser Material
Plastic
Shape
Rectangular
Length
1175mm
Width
22mm
Height
85mm
Suspended Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
40W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
900mA
Voltage
40V
Power (Watts)
36W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
LED Number
144 Up 288 Down
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
27-38W
Power Factor
0,95
Constant Current
Yes
900mA
30-42V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Metal
Output Terminal
Connector
Illumination Data
Colour Temperature
4000K
Lumen Output
3600lm
Light Efficiency
90lm/W
CRI
90
Illumination Diagram
Packing Info
Box Weight
2.058kg
Pcs/Carton
12
Barcode
5291889063926
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
