21 Industrial & Floodlights > The IP65 LED Connectable Range Single
38145LC/C

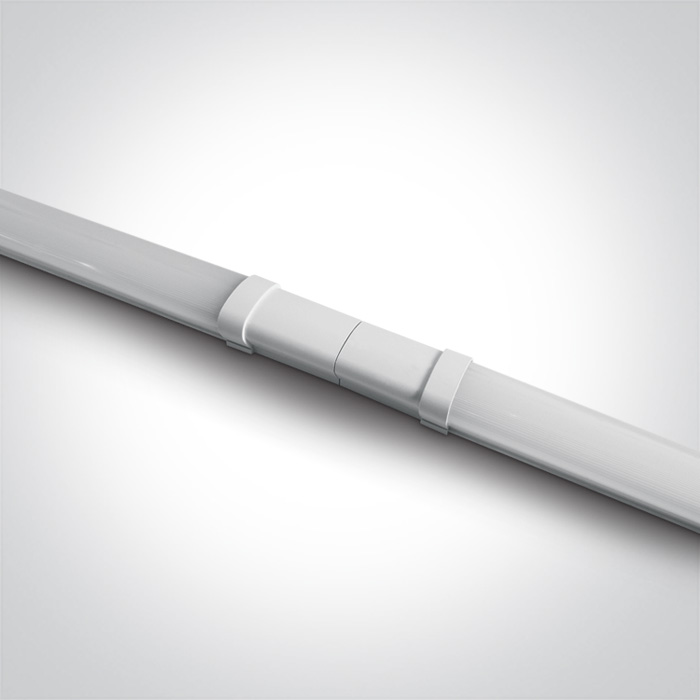

45W IP65 slim LED connectable fitting .
Stainless steel clips included.
Polycarbonate body and diffuser.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Stainless steel clips included.
Polycarbonate body and diffuser.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

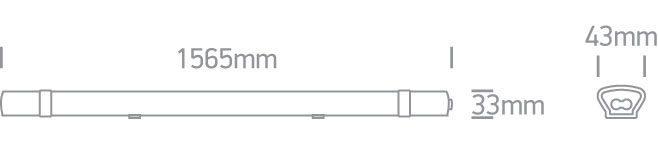

Dimensions
Downloads
Physical Specification
Item Group
21 Industrial & Floodlights
Family
The IP65 LED Connectable Range Single
Order Code
38145LC/C
Colour
White
Material
PC
Diffuser Material
PC
Shape
Rectangular
Length
1565mm
Width
40mm
Height
43mm
Surface Ceiling
Yes
Surface Wall
Yes
Indoor
Yes
Outdoor
Yes
Adjustable
No
IK Rating
8
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
45W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
Cable Length
50cm
F Mark
Fitting
Input Type
Constant Current
Power (Watts)
45W
IP Rating
IP65
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Sanan
Gear
Gear Type
Led Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
45W
Power Factor
0,9
Constant Current
Yes
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
4000K
Lumen Output
4000lm
Light Efficiency
88,89lm/W
CRI
80
Beam Angle
120°
Illumination Diagram
Packing Info
Box Weight
0.510kg
Pcs/Carton
20
Barcode
5291889062752
HS Code
9405114090
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
