11 Office & Kitchen > LED Linear Profiles Large size
38161A/W/C

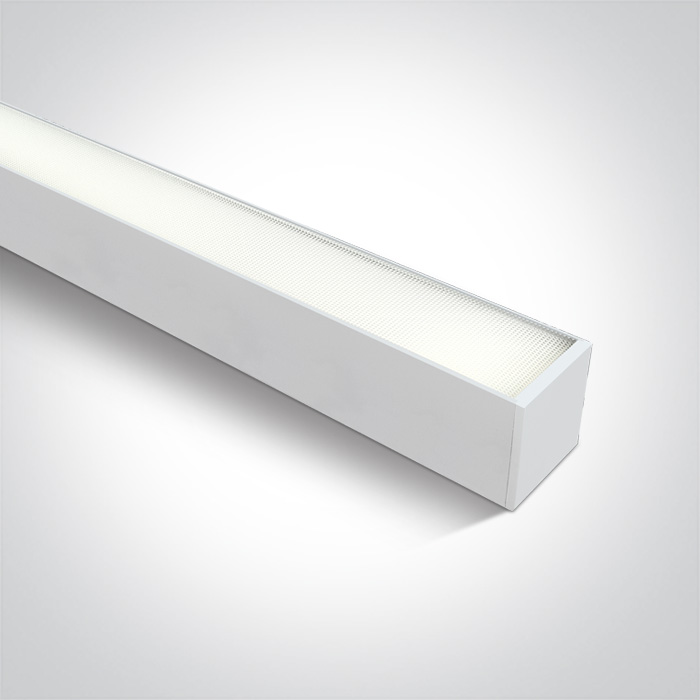

50W UGR19 Linear system with diffuser for surface or suspended installation, ideal for offices.

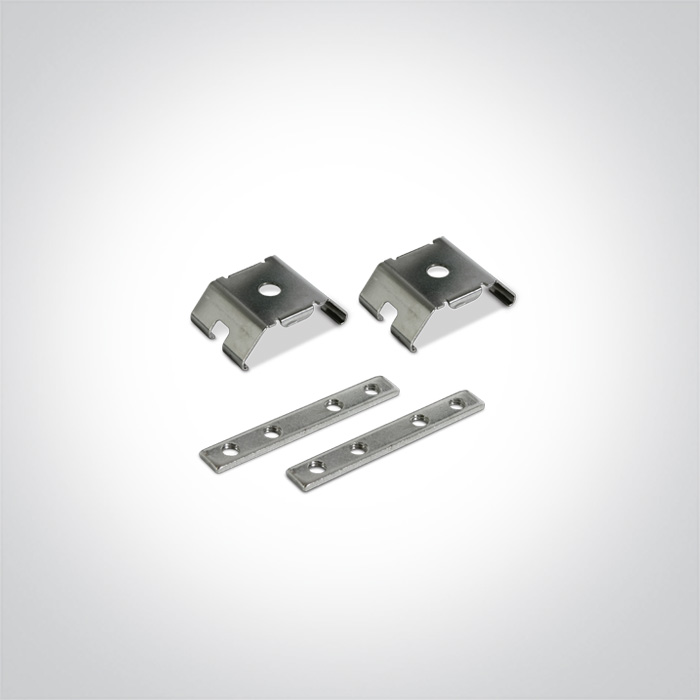

Complete with 1250mA driver, 5pcs fixing clips & 4pcs connectors.
Complies with standard EN60598-1 and any other specific standards.
Complete with 1250mA driver, 5pcs fixing clips & 4pcs connectors.
Complies with standard EN60598-1 and any other specific standards.

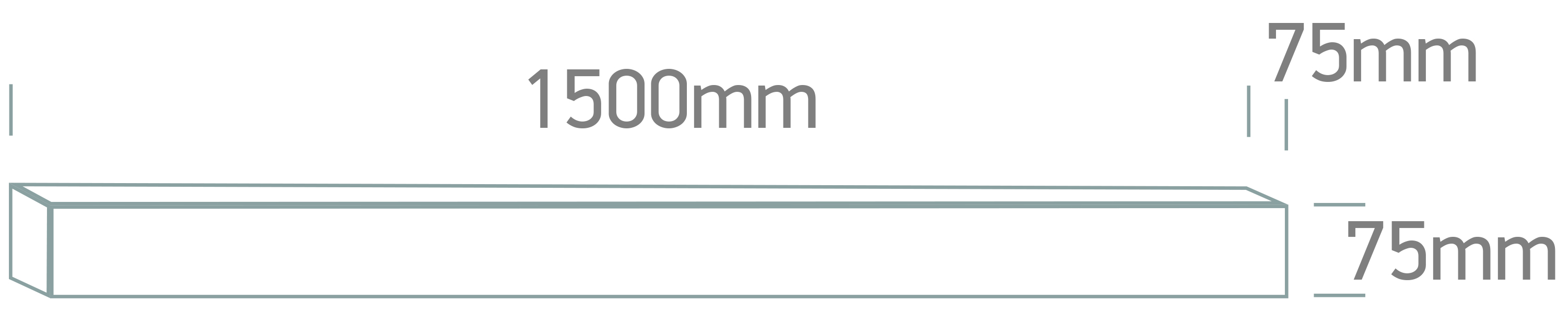

Dimensions
Downloads
Physical Specification
Item Group
11 Office & Kitchen
Family
LED Linear Profiles Large size
Order Code
38161A/W/C
Colour
White
Material
Aluminium
Shape
Rectangular
Length
1500mm
Width
75mm
Height
75mm
Surface Ceiling
Yes
Suspended Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
50W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
Cable Length
300cm
F Mark
Fitting
Input Type
Constant Current
Input Current
1250mA
Voltage
37V
Power (Watts)
46,25W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
Gear
Gear Type
Led Driver
Input Voltage
220-240V
Power (Watts)
35-50W
Power Factor
0,9
Constant Current
Yes
1250mA
28-40V
IP Rating
IP20
Safety Class
Dimmable
No
Illumination Data
Colour Temperature
4000K
Lumen Output
4250lm
Light Efficiency
85lm/W
CRI
90
Illumination Diagram
Packing Info
Box Weight
3.780kg
Pcs/Carton
9
Barcode
5291889077435
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
23
