01 Recessed Spots Fixed > The Trimless Chill Out Range Square
50105RM

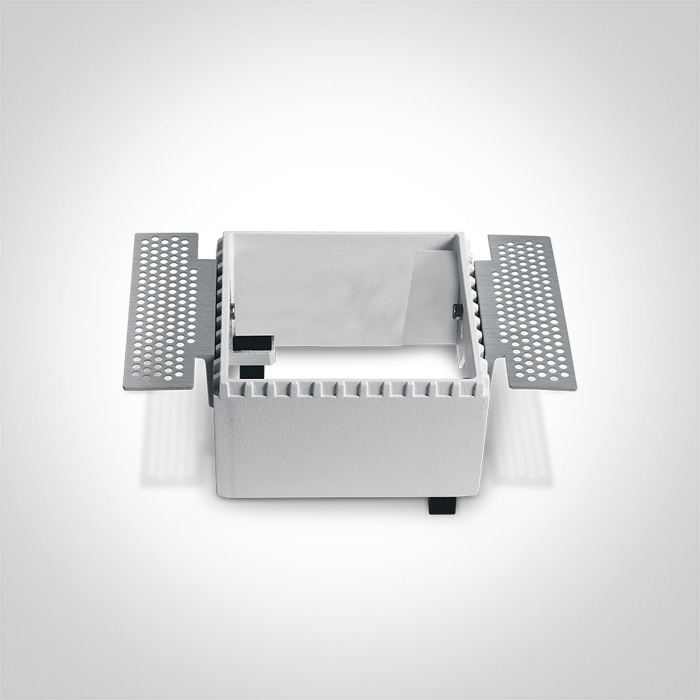

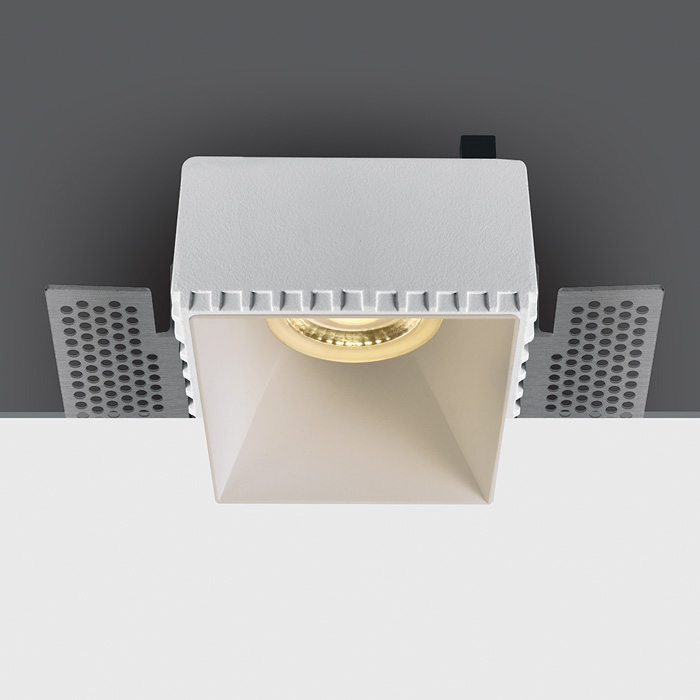

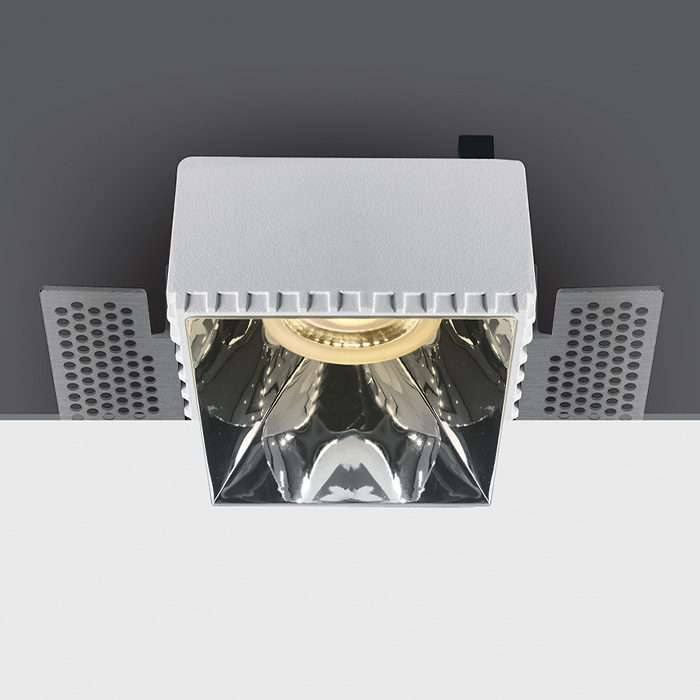

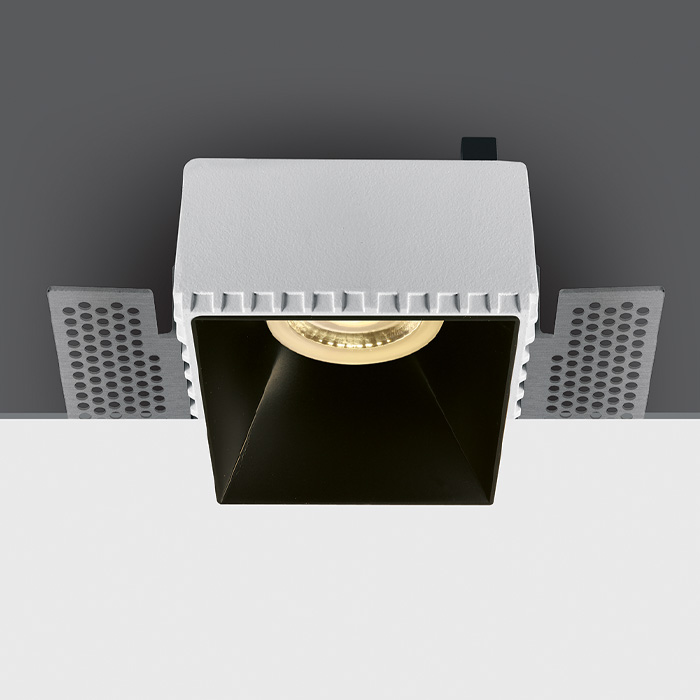

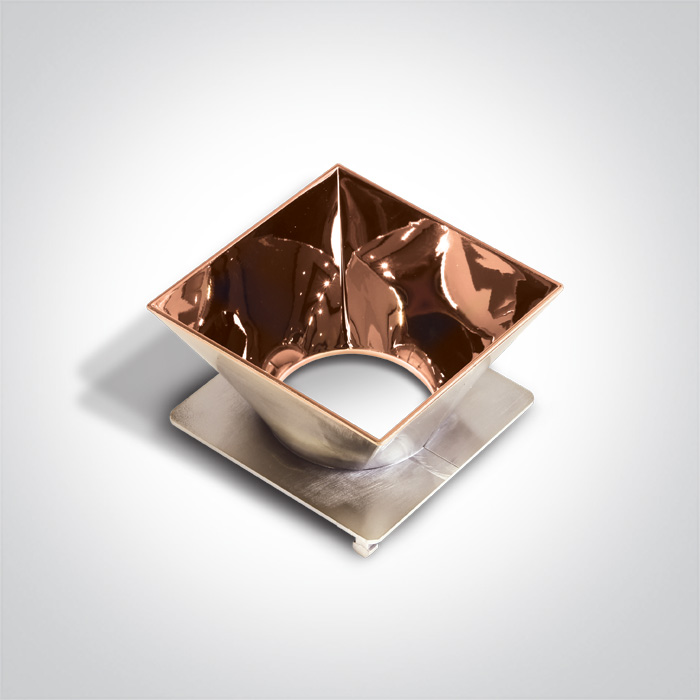

Trimless Recessed dark light MR16 spot with interchangeable reflector and GU10 lampholder.

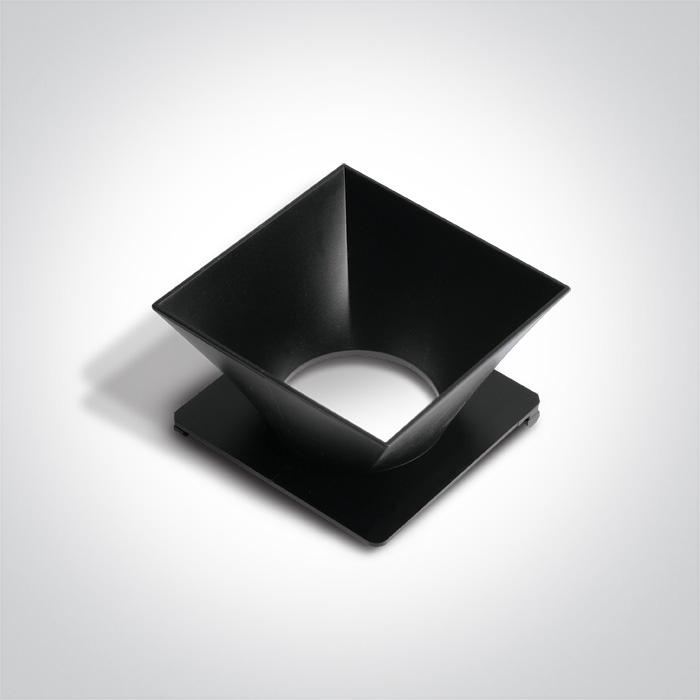

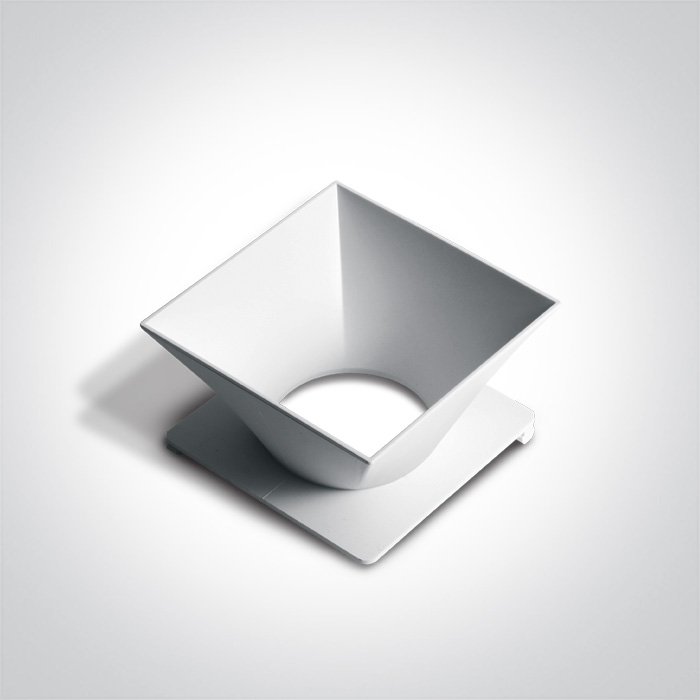

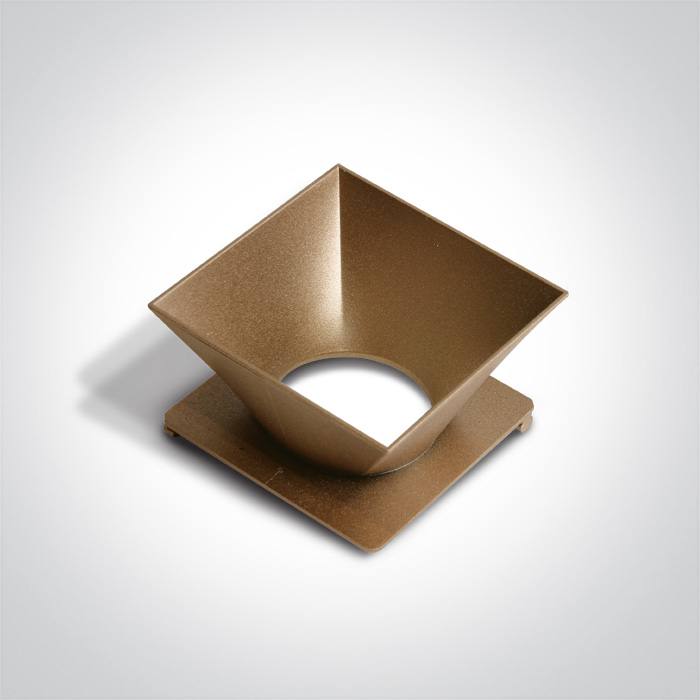

Reflector must be order seperately.
Complies with standard EN60598-1 and any other specific standards.
Reflector must be order seperately.
Complies with standard EN60598-1 and any other specific standards.

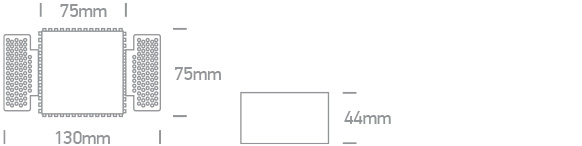

Dimensions
Downloads
Physical Specification
Item Group
01 Recessed Spots Fixed
Family
The Trimless Chill Out Range Square
Order Code
50105RM
Colour
White
Material
Die Cast
Shape
Rectangular
Length
75mm
Width
75mm
Height
55mm
Cutout Hole Width
85mm
Cutout Hole Height
75mm
Recessed trimmless ceiling
Yes
Depth Required
130mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
No
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
10W
IP Rating
IP20
Light Source
Replaceable lamp
Number of Lamps
1
Dimmable
N/A
Cable Length
15cm
F Mark
Illumination Data
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
10cm
Box Width
7cm
Box Height
15cm
Box Weight
0.258kg
Pcs/Carton
50
Barcode
5291889053637
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
