01 Recessed Spots Fixed > The Semi Trimless Dark Light
50105TG/W

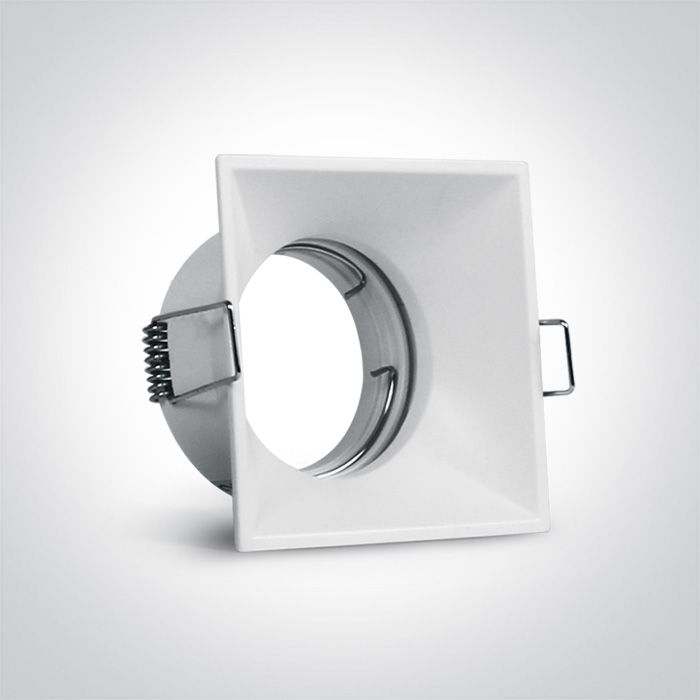

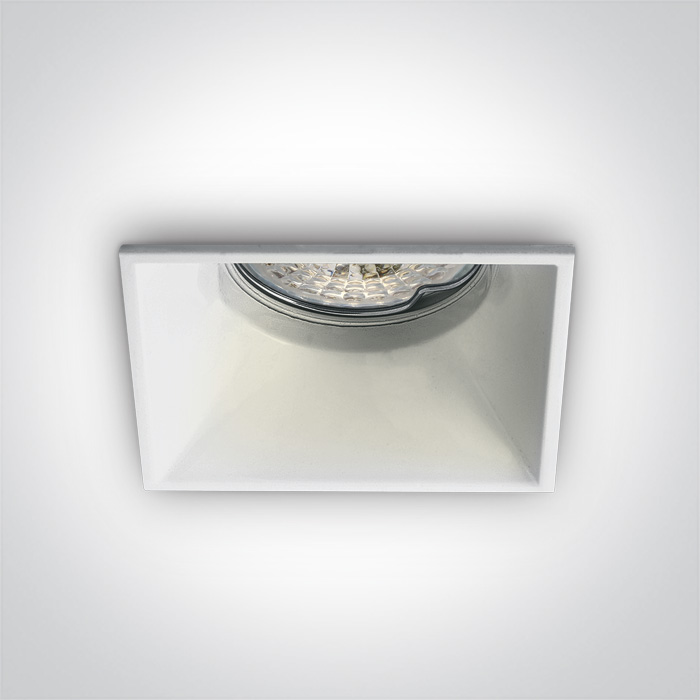

Recessed semi trimless aluminium spot with GU10 lampholder.
Complies with standard EN60598-1 and any other specific standards.
Complies with standard EN60598-1 and any other specific standards.

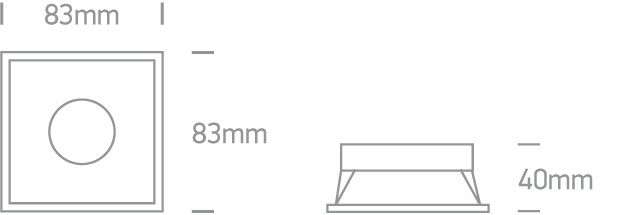

Dimensions
Downloads
Physical Specification
Item Group
01 Recessed Spots Fixed
Family
The Semi Trimless Dark Light
Order Code
50105TG/W
Colour
White
Material
Die Cast
Shape
Rectangular
Length
83mm
Width
83mm
Height
110mm
Cutout Hole Width
76mm
Cutout Hole Height
76mm
Recessed Ceiling
Yes
Depth Required
140mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
No
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
10W
IP Rating
IP20
Light Source
Replaceable lamp
Lamp Holder
GU10
Number of Lamps
1
Dimmable
N/A
Cable Length
15cm
F Mark
Illumination Data
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
10cm
Box Width
9cm
Box Height
6,5cm
Box Weight
0.194kg
Pcs/Carton
50
Barcode
5291889043980
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
13
