06 Downlights Fixed LED > The 40W Backlit Panel 600x600mm
50140B/W/C

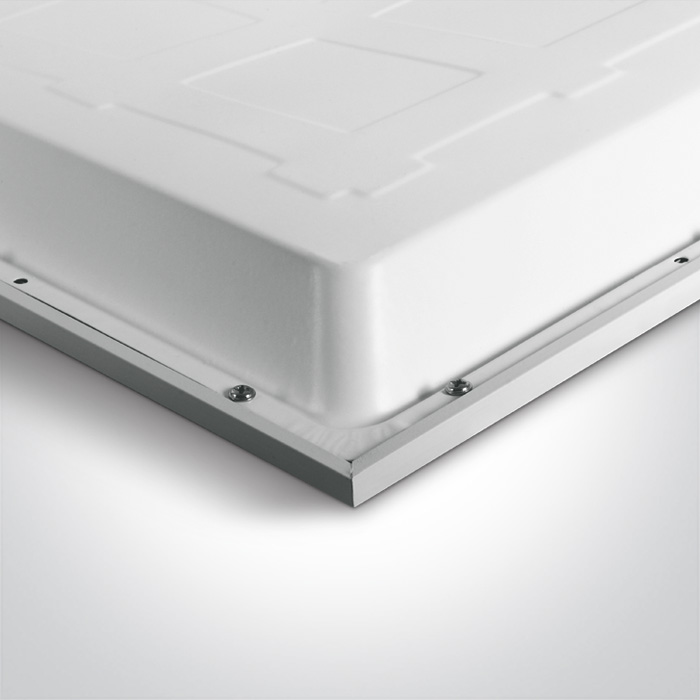

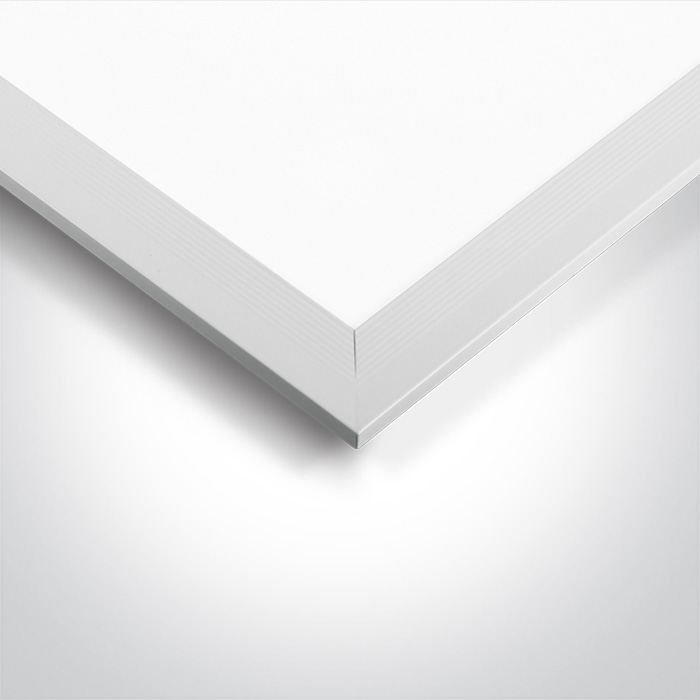

60x60 recessed backlit LED panel for T-rail false ceilings.
Uniform lighting, ideal for
commercial applications.
Complete with 850mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 850mA driver.
Complies with standard EN60598-1 and any other specific standards.

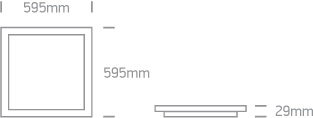

Dimensions
Downloads
Physical Specification
Item Group
06 Downlights Fixed LED
Family
The 40W Backlit Panel 600x600mm
Order Code
50140B/W/C
Colour
White
Material
Aluminium + Steel
Shape
Rectangular
Length
595mm
Width
595mm
Height
29mm
Recessed T-Ceiling
Yes
Depth Required
50mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
40W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
850mA
Voltage
45V
Safety Class
Power (Watts)
38,7W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Samsung
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
32,3-38,25W
Power Factor
0,9
Constant Current
Yes
850mA
38-45V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Cable Length
50cm
Illumination Data
Colour Temperature
4000K
Lumen Output
4000lm
Light Efficiency
100lm/W
CRI
80
Beam Angle
120°
Illumination Diagram
Packing Info
Box Weight
2.300kg
Pcs/Carton
4
Barcode
5291889068334
HS Code
9405119090
Energy Label
Certification & Warranty
Warranty
3 years
Average Lifetime
35000hours
Wee Directive
Yes
Year in which the CE mark was affixed
20
