07 Downlights Adjustable LED > The COB Box Type Shop Range
51230/B/C

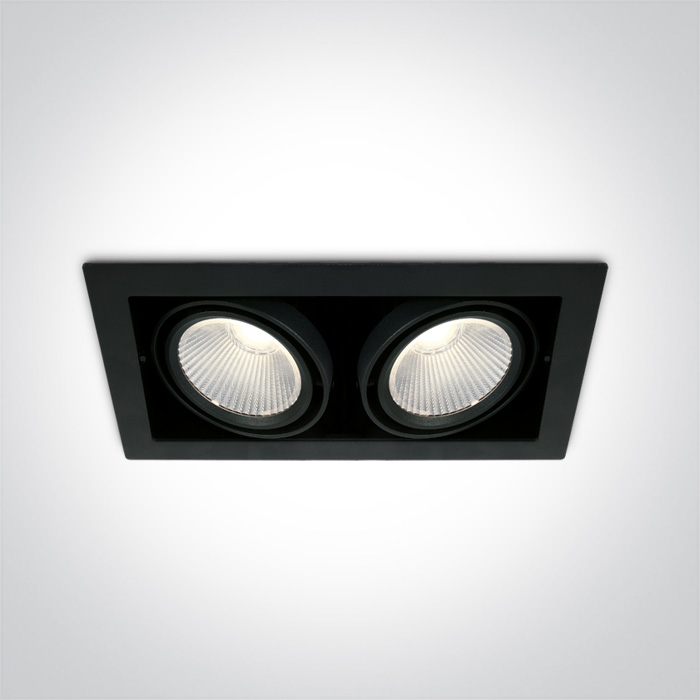

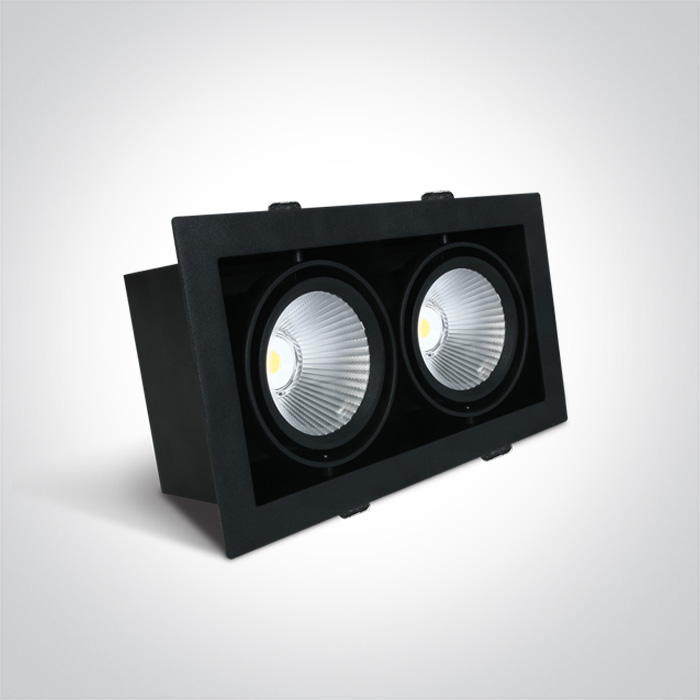

2x30W COB LED Recessed adjustable downlight, COB square range, IP20.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
07 Downlights Adjustable LED
Family
The COB Box Type Shop Range
Order Code
51230/B/C
Colour
Black
Material
Aluminium
Shape
Rectangular
Length
340mm
Width
185mm
Height
105mm
Cutout Hole Width
320mm
Cutout Hole Height
160mm
Recessed Ceiling
Yes
Depth Required
125mm
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
2x30W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
750mA
Voltage
2x35,5V
Safety Class
Power (Watts)
2x27W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Sanan
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
24,75-30W
Power Factor
0,9
Constant Current
Yes
750mA
33-40V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Illumination Data
Colour Temperature
4000K
Lumen Output
2x2700lm
Light Efficiency
90lm/W
CRI
90
Beam Angle
38°
Illumination Diagram
Packing Info
Box Weight
3.000kg
Pcs/Carton
6
Barcode
5291889061359
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
