14 Plafo > The LED Slim Line Plafo
62160/W/W

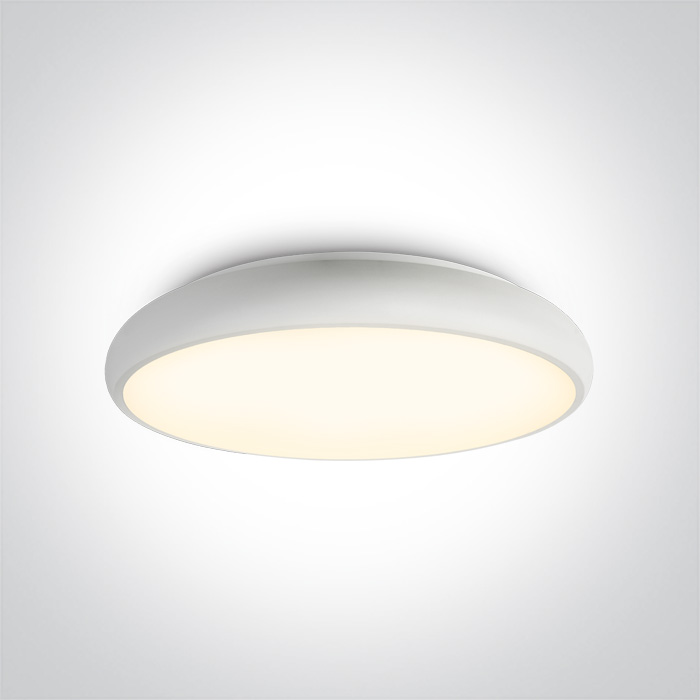

60W LED slim plafo light, IP20, suitable for residential and commercial application.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

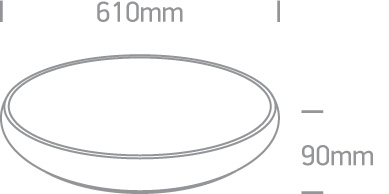

Dimensions
Downloads
Physical Specification
Item Group
14 Plafo
Family
The LED Slim Line Plafo
Order Code
62160/W/W
Colour
White
Material
Metal
Shape
Circular
Height
90mm
Diameter
610mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
62W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
1500mA
Voltage
39V
Safety Class
Power (Watts)
58,5W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Sanan
Fast Connector
Other
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
37,5-63W
Power Factor
0,9
Constant Current
Yes
1500mA
25-42V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
40°C
Operating Temp
80°C
Housing Material
Plastic
Output Terminal
Cable
Fast Connector
Yes
Fast Connector Type
Other
Illumination Data
Colour Temperature
3000K
Lumen Output
3600lm
Light Efficiency
58,06lm/W
CRI
80
Illumination Diagram
Packing Info
Box Length
68cm
Box Width
68cm
Box Height
12cm
Box Weight
6.000kg
Pcs/Carton
1
Carton Length
68cm
Carton Width
68cm
Carton Height
12cm
Carton Weight
6,1Kg
Barcode
5291889056911
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
