15 Pendants > LED Pendant Tubes
63108B/B/W

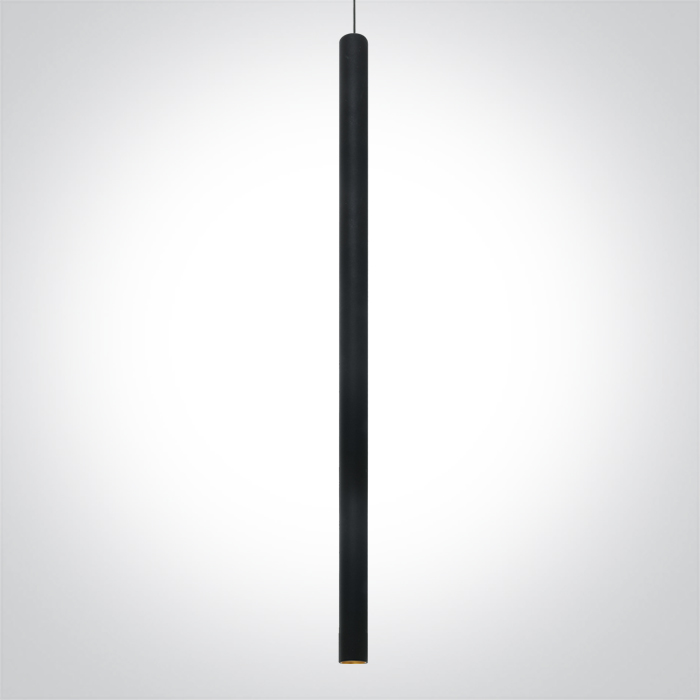

6W COB LED Cylinder pendant .
Complete with 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
15 Pendants
Family
LED Pendant Tubes
Order Code
63108B/B/W
Colour
Black
Material
Aluminium
Shape
Circular
Height
800mm
Diameter
26mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
6W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
Cable Length
120cm
F Mark
Fitting
Input Type
Constant Current
Input Current
700mA
Voltage
8,5V
Power (Watts)
5,9W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Philips
LED Number
1
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
1,9-6,7W
Power Factor
0,5
Constant Current
Yes
700mA
2,7-9,6V
IP Rating
IP20
Safety Class
Dimmable
No
Illumination Data
Colour Temperature
3000K
Lumen Output
420lm
Light Efficiency
70lm/W
CRI
80
Beam Angle
30°
Illumination Diagram
Packing Info
Box Weight
0.991kg
Pcs/Carton
12
Barcode
5291889074168
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
