17 Hotel & Bedroom > Reading Spots

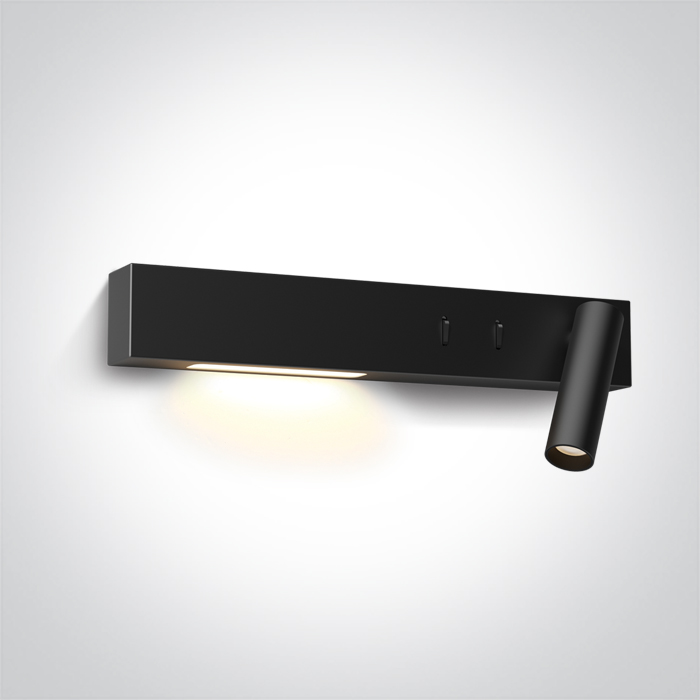

65146A/B/W
3W LED + 6W side right light bedside adjustable fitting with 2 switches, IP20.
Complete with 500mA and 700mA drivers. Complete with black,brass & white reflectors.
Complies with standard EN60598-1 and any other specific standards.
Complete with 500mA and 700mA drivers. Complete with black,brass & white reflectors.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
17 Hotel & Bedroom
Family
Reading Spots
Order Code
65146A/B/W
Colour
Black
Material
Metal + Aluminium
Shape
Rectangular
Length
300mm
Width
50mm
Height
35mm
Surface Wall
Yes
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
3W+6W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
700mA+500mA
Voltage
2,8V + 10V
Safety Class
Power (Watts)
1,96W + 5W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 3535
LED Brand
Bridgelux
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
9W
Power Factor
0,5
Constant Current
Yes
IP Rating
IP20
Safety Class
Dimmable
No
Illumination Data
Colour Temperature
3000K
Lumen Output
150lm +420lm
CRI
90
Illumination Diagram
Packing Info
Box Weight
0.785kg
Pcs/Carton
20
Barcode
5291889074076
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
