09 Track Lights > Dark Light Tubes Track Lights

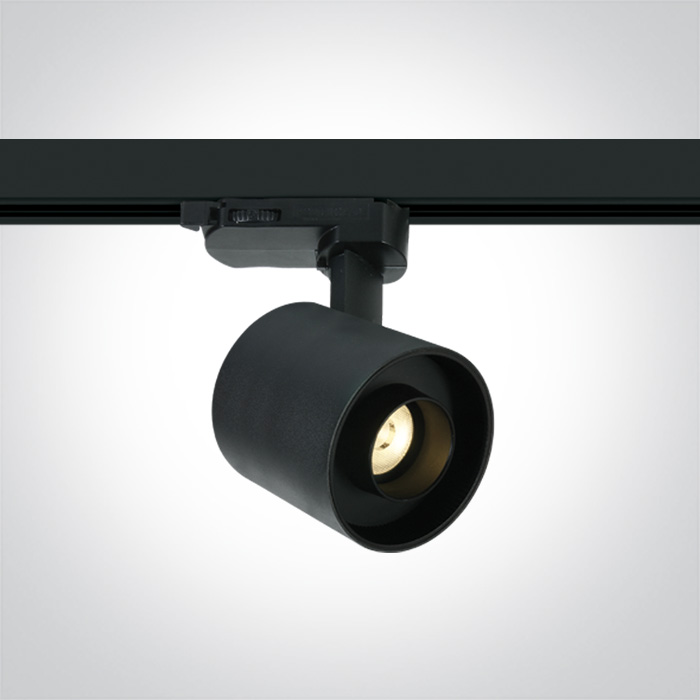

65656AT/B/W
6W SMD LED track spot with, ideal for
shops and showrooms.
Complete with 150mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 150mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
09 Track Lights
Family
Dark Light Tubes Track Lights
Order Code
65656AT/B/W
Colour
Black
Material
Aluminium
Shape
Circular
Height
66mm
Diameter
68mm
Track mounted
Yes
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
6W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
Fitting
Input Type
Constant Current
Input Current
150mA
Voltage
30V
Safety Class
Power (Watts)
4,5W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 5050
LED Brand
Osram
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
3,75-6W
Power Factor
0,5
Constant Current
Yes
150mA
25-40V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
480lm
Light Efficiency
80lm/W
CRI
90
Beam Angle
40°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.303kg
Pcs/Carton
28
Barcode
5291889066736
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
