09 Track Lights > The COB Shop Range Dimmable

65660BTL/W/C

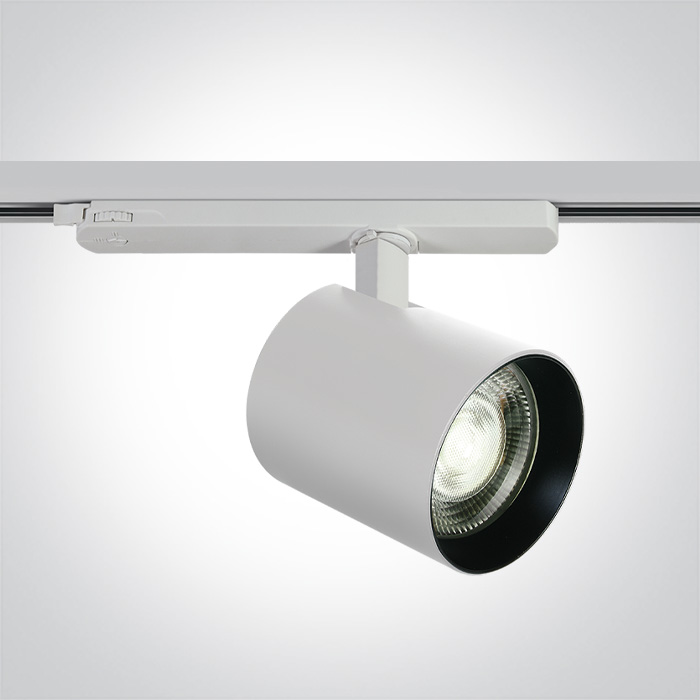

35W DALI Dimmable COB LED track spot for standard 3 phase track. Ideal for shops and showrooms.

Complete with DALI driver.

Complies with standard EN60598-1 and any other specific standards.
Indoor
Ceiling
IP
CRI
Adjustable
Dimmable
Dimmable
Beam Angle
CE
Dimensions
Downloads

Physical Specification

+
Item Group
09 Track Lights
Family
The COB Shop Range Dimmable
Order Code
65660BTL/W/C
Colour
White
Material
Aluminium
Shape
Circular
Height
100mm
Diameter
100mm
Track mounted
Yes
Indoor
Yes
Adjustable
2 Directions

Electrical Characteristics

+
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
35W
IP Rating
IP20
Light Source
LED built in
Dimmable
Yes
Dimmer type
Dali, Push to Dim
Fitting
Input Type
Constant Current
Input Current
850mA
Voltage
38V
Power (Watts)
32,3W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Number
1
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
8.5W-34W
Power Factor
0,9
Constant Current
Yes
850mA
10-40V
IP Rating
IP20
Safety Class
Dimmable
Yes
Dimmer type
Dali, Push to Dim
Housing Material
Plastic
Output Terminal
Connector

Illumination Data

+
Colour Temperature
4000K
Lumen Output
4200lm
Light Efficiency
120lm/W
CRI
90
Beam Angle
38°
Illumination Diagram

Packing Info

+
Box Weight
1.340kg
Pcs/Carton
10
Barcode
5291889077947
HS Code
9405413990

Energy Label

+

Certification & Warranty

+
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
23
