20 Garden & Underwater > LED Garden Spots

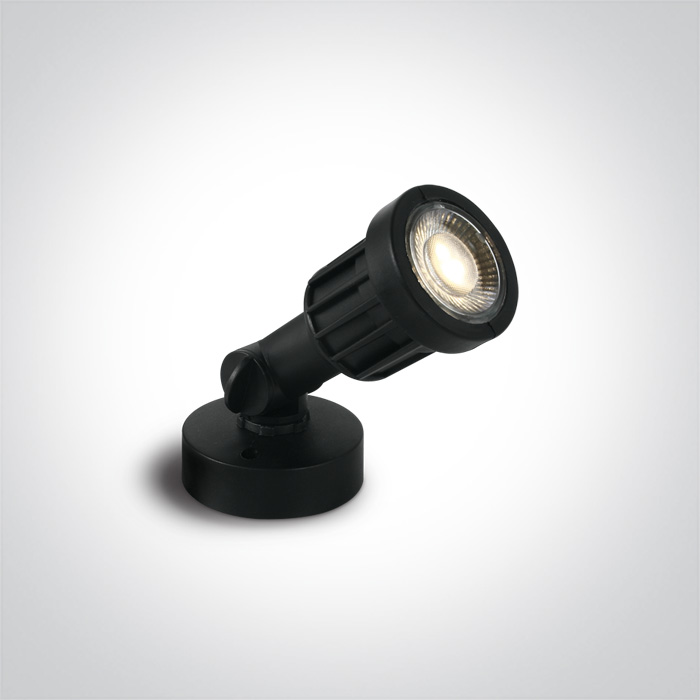

7070/W
5W LED spot, IP65, supplied with spike, for garden illumination.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
20 Garden & Underwater
Family
LED Garden Spots
Order Code
7070/W
Colour
Black
Material
Plastic
Shape
Circular
Height
150mm
Diameter
55mm
Surface Wall
Yes
Surface Floor/Ground
Yes
Outdoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
5W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
Cable Length
200cm
F Mark
Fitting
Input Type
Constant Current
Power (Watts)
5W
IP Rating
IP65
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Sanan
LED Number
1
Gear
Gear Type
Led Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
5W
Power Factor
0,5
Constant Current
Yes
IP Rating
IP20
Safety Class
Dimmable
No
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
400lm
Light Efficiency
80lm/W
CRI
80
Beam Angle
38°
Illumination Diagram
Packing Info
Box Weight
0.362kg
Pcs/Carton
40
Barcode
5291889062011
HS Code
9405114090
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
