ONE Light

    • 25 Lamps > MR16 LED Dimmable

    7307M/W
    Gallery
    7307M/W
    7307M/W

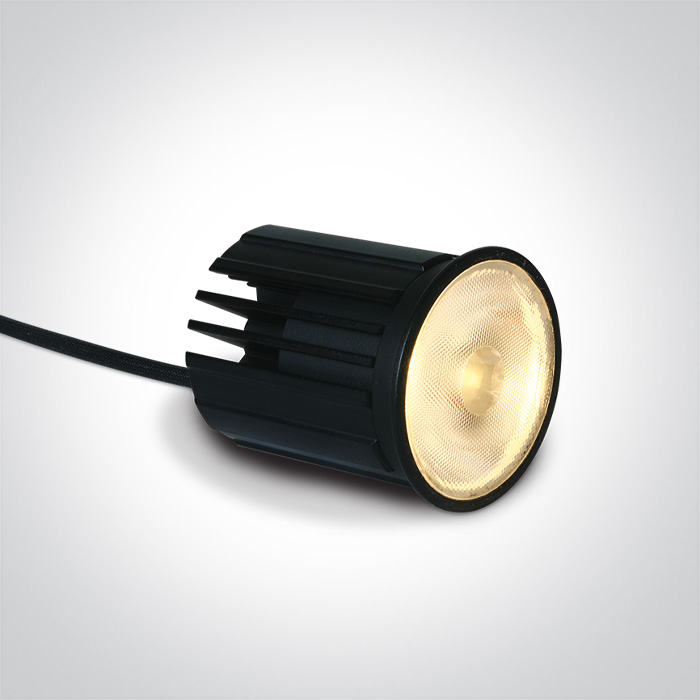

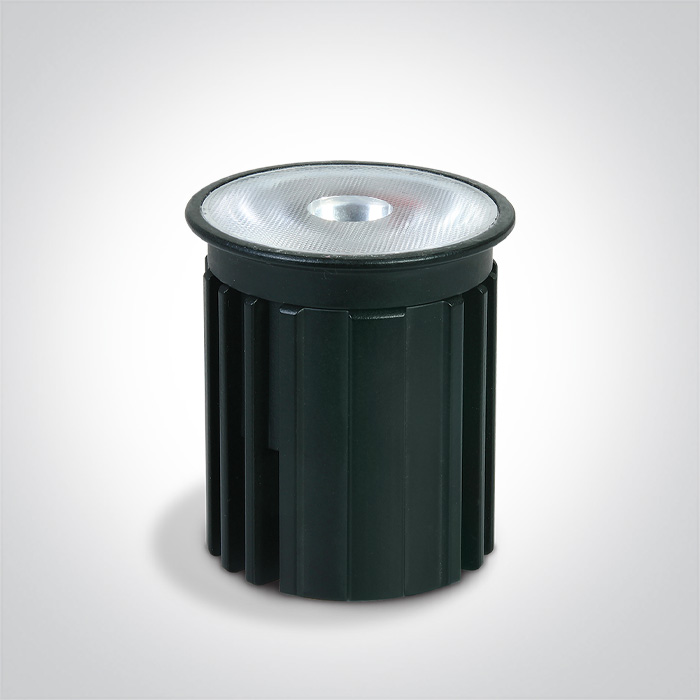

    IP65 700mA LED module suitable for MR16 fittings.

    Suitable for residential and commercial applications.

    Complies with standard EN62560 and any other specific standards.
    IP
    CRI
    Beam Angle
    CE

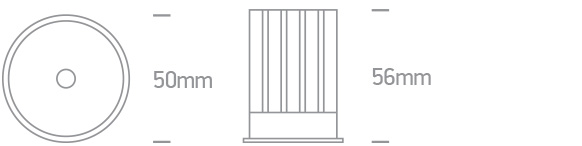

    Dimensions
    Downloads
    Product PDF Installation Manual IES Photo Download

    Physical Specification

    +
    Item Group
    25 Lamps
    Family
    MR16 LED Dimmable
    Order Code
    7307M/W
    Colour
    Black
    Shape
    Circular
    Height
    56mm
    Diameter
    50mm

    Electrical Characteristics

    +
    Gear
    Order Separately
    Lamp
    Input Type
    Constant Current
    Input Current
    700mA
    Voltage Range
    10V
    Power (Watts)
    7W
    IP Rating
    IP65
    Lamp Type
    LED
    LED Type
    COB
    LED Brand
    Bridgelux
    Dimmable
    Yes

    Illumination Data

    +
    Colour Temperature
    3000K
    Lumen Output
    700lm
    Light Efficiency
    100lm/W
    CRI
    90
    Beam Angle
    36°
    Illumination Diagram

    Packing Info

    +
    Box Weight
    0.144kg
    Pcs/Carton
    50
    Barcode
    5291889073291
    HS Code
    8539520000

    Energy Label

    +
    Energy Class
    Energy Consumption
    6kWh/1000h

    Certification & Warranty

    +
    Warranty
    5 years
    Wee Directive
    Yes
    Year in which the CE mark was affixed
    22
