08 Strips & Profiles > The RGB & RGBW Strips 24V
.jpg)
7830/RGB
RGB flexible LED light strip, with SMD5050 LEDs, 60LEDs/meter, 14,4W/meter.Supplied in 5 meters roll with white PCB and double adhesive tape for a better fixing.

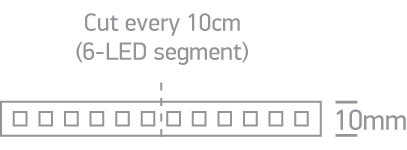

Can be cut every 10cm (6-LED segment).
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Can be cut every 10cm (6-LED segment).
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
08 Strips & Profiles
Family
The RGB & RGBW Strips 24V
Order Code
7830/RGB
Shape
Rectangular
Length
5m
Width
10mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Indoor
Yes
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
24V DC
Safety Class
Power (Watts)
14,4W/m
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 5050
LED Brand
Refond
LED Number
60Leds/m
Illumination Data
Colour Temperature
RGB
Illumination Diagram
Packing Info
Box Length
24cm
Box Width
21,5cm
Box Height
2cm
Box Weight
0.220kg
Pcs/Carton
40
Barcode
5291889017691
HS Code
9405499090
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
12
