08 Strips & Profiles > The RGB & RGBW Strips 24V
7830/RGBW
RGBW flexible LED light strip, with SMD5050 LEDs, 60LEDs/meter, 19,2W/meter.
Supplied in 5 meters roll,with white PCB and double adhesive tape for a better fixing.

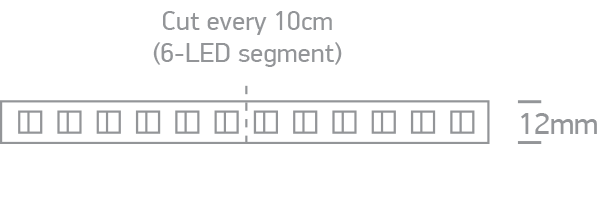

Can be cut every 10cm (6-LED segment).
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Can be cut every 10cm (6-LED segment).
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
08 Strips & Profiles
Family
The RGB & RGBW Strips 24V
Order Code
7830/RGBW
Shape
Rectangular
Length
5m
Width
12mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Indoor
Yes
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
24V DC
Safety Class
Power (Watts)
19,2W/m
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 5050
LED Brand
Refond
LED Number
60Leds/m
Illumination Data
Colour Temperature
RGB+3000K
Illumination Diagram
Packing Info
Box Weight
0.242kg
Pcs/Carton
40
Barcode
5291889048824
HS Code
9405499090
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
12
