08 Strips & Profiles > The RGB & RGBW Strips 24V
7846/RGB

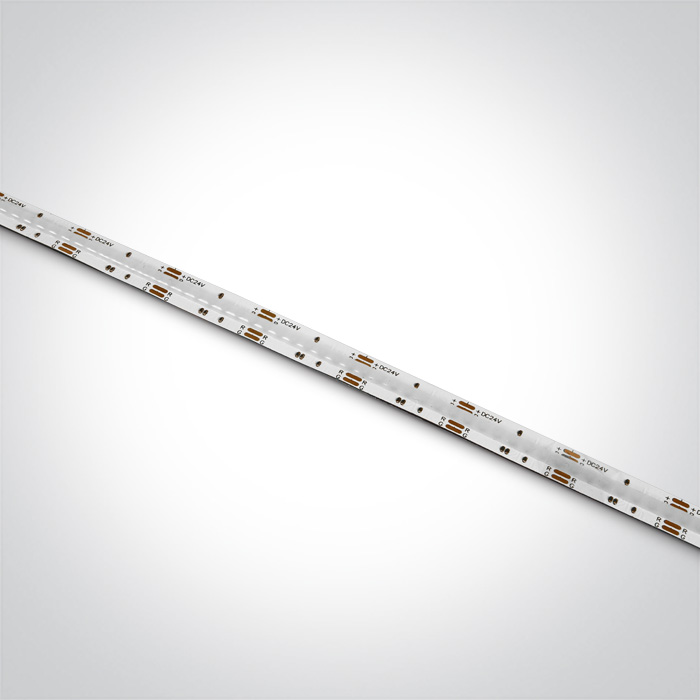

COB RGB flexible LED light strip, 840LEDs/m, 15W/meter. Supplied in 5 meters roll with white PCB and double adhesive tape for a better fixing.
Can be cut every 2,5cm (21-LED segment).
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Can be cut every 2,5cm (21-LED segment).
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.

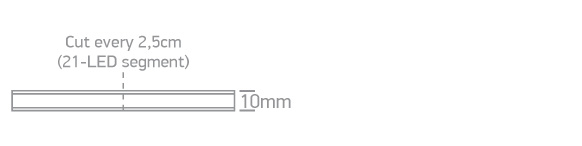

Dimensions
.jpg)
Downloads
Physical Specification
Item Group
08 Strips & Profiles
Family
The RGB & RGBW Strips 24V
Order Code
7846/RGB
Shape
Rectangular
Length
5000mm
Width
10mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Indoor
Yes
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
24V DC
Safety Class
Power (Watts)
15W/m
IP Rating
IP20
Light Source
LED built in
LED Type
COB
F Mark
Illumination Data
Colour Temperature
RGB
Illumination Diagram
Packing Info
Box Weight
0.216kg
Pcs/Carton
50
Barcode
5291889072690
HS Code
9405499090
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
21
