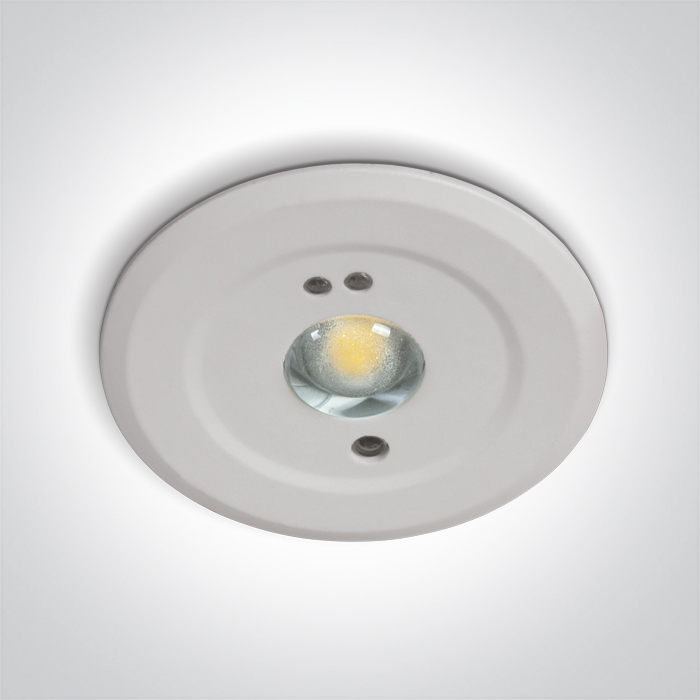

22 Emergency Lights > Emergency LED Recessed Spot
89002B
1,5W Emergency LED recessed, IP20, ideal for corridors. Non-maintained with self-test.
Complies with standard EN60598-1 and any other specific standards.
Complies with standard EN60598-1 and any other specific standards.

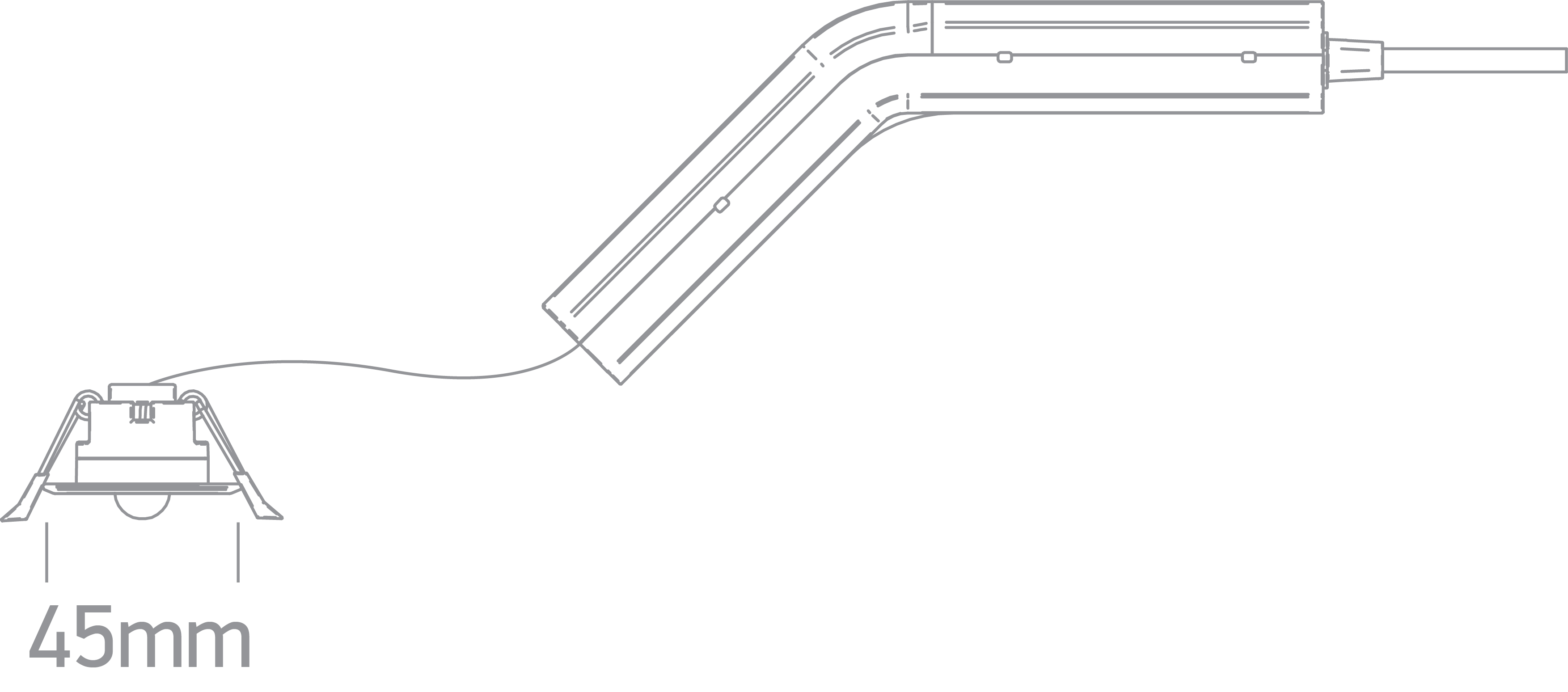

Dimensions
Downloads
Physical Specification
Item Group
22 Emergency Lights
Family
Emergency LED Recessed Spot
Order Code
89002B
Material
Plastic
Shape
Circular
Cutout Hole Width
35
Cutout Hole Height
120
Recessed Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
1,5W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Voltage
Safety Class
Power (Watts)
1,5W
IP Rating
IP20
Light Source
LED built in
F Mark
Gear
Gear Type
Emergency Kit
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
IP Rating
IP20
Dimmable
No
Housing Material
Plastic
Battery Capacity
2500mAh
Battery Voltage
3,6V
Operation Time
3 hours
Charging Time
8 hours
Non Maintained
Yes
Illumination Data
Colour Temperature
4000K
Lumen Output
150lm
Light Efficiency
100lm/W
Beam Angle
125°
Illumination Diagram
Packing Info
Box Weight
0.215kg
Pcs/Carton
20
Barcode
5291889078043
HS Code
8504408390
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
23
