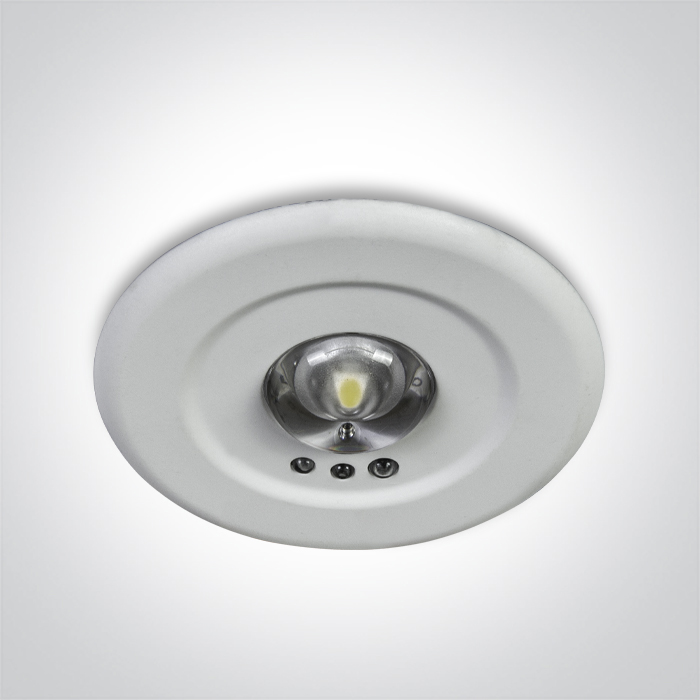

22 Emergency Lights > Emergency LED Recessed Spot
89002C
3W Emergency LED recessed, IP20, ideal for corridors. Non-maintained with self-test.
Complies with standard EN60598-1 and any other specific standards.
Complies with standard EN60598-1 and any other specific standards.

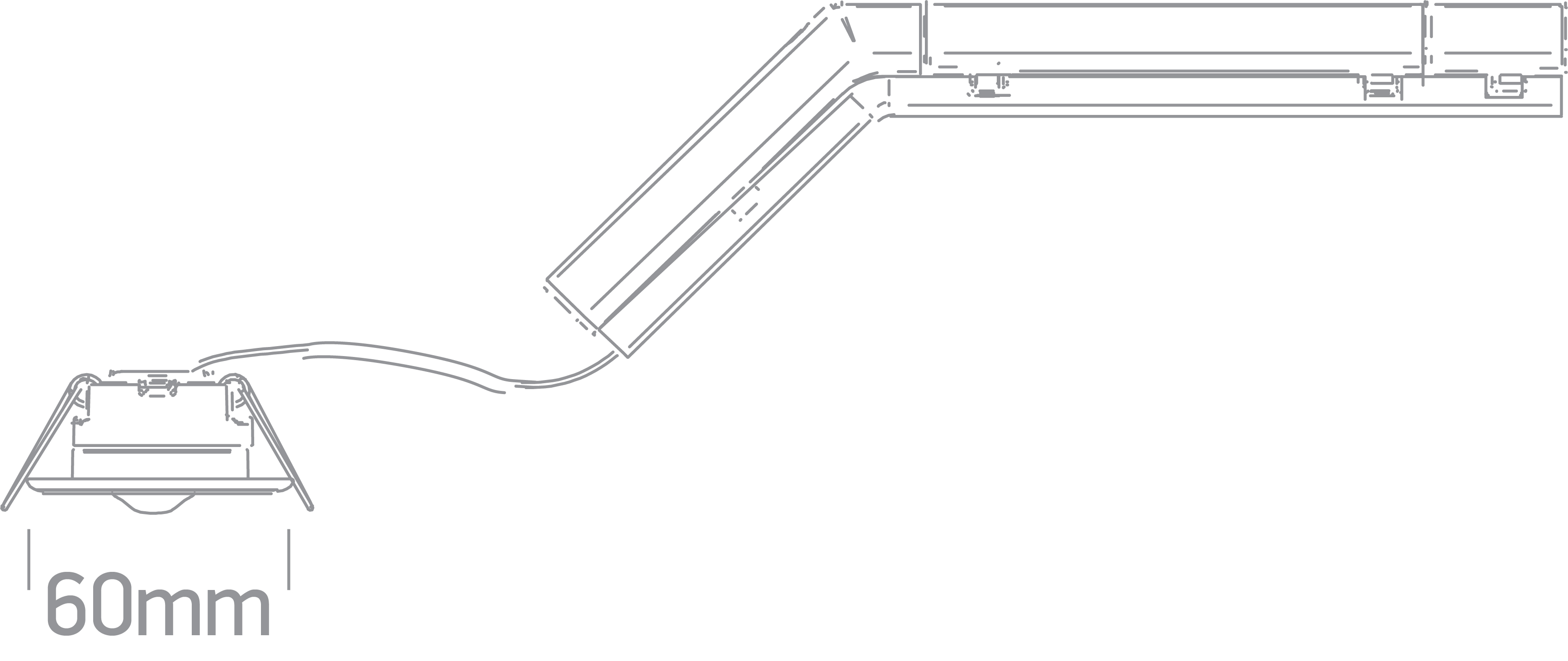

Dimensions

Downloads
Physical Specification
Item Group
22 Emergency Lights
Family
Emergency LED Recessed Spot
Order Code
89002C
Material
Plastic
Shape
Circular
Cutout Hole Width
45
Cutout Hole Height
130
Recessed Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class

Power (Watts)
3W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark

Fitting
Input Type
Constant Voltage
Safety Class

Power (Watts)
3W
IP Rating
IP20
Light Source
LED built in
F Mark

Gear
Gear Type
Emergency Kit
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
IP Rating
IP20
Dimmable
No
Housing Material
Plastic
Battery Capacity
5000mAh
Battery Voltage
3,6V
Operation Time
3 hours
Charging Time
8 hours
Non Maintained
Yes
Illumination Data
Colour Temperature
4000K
Lumen Output
300lm
Light Efficiency
100lm/W
Beam Angle
155°
Illumination Diagram

Packing Info
Box Weight
0.320kg
Pcs/Carton
20
Barcode
5291889078050
HS Code
8504408390
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
23
