    • New 2025 Edition 2 > Drivers

    89007T
    89007T

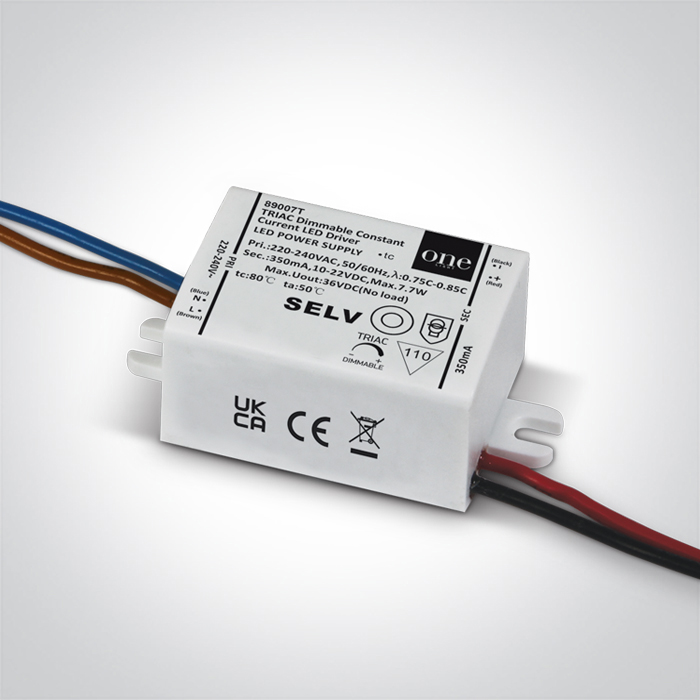

    IP20 Constant current LED driver, TRIAC dimmable, for 350mA LED spots / LED fittings 3,5-7W.

    Complies with standard EN61347-1 and any other specific standards.
    Indoor
    IP
    Dimmable
    Quick Fix
    CE

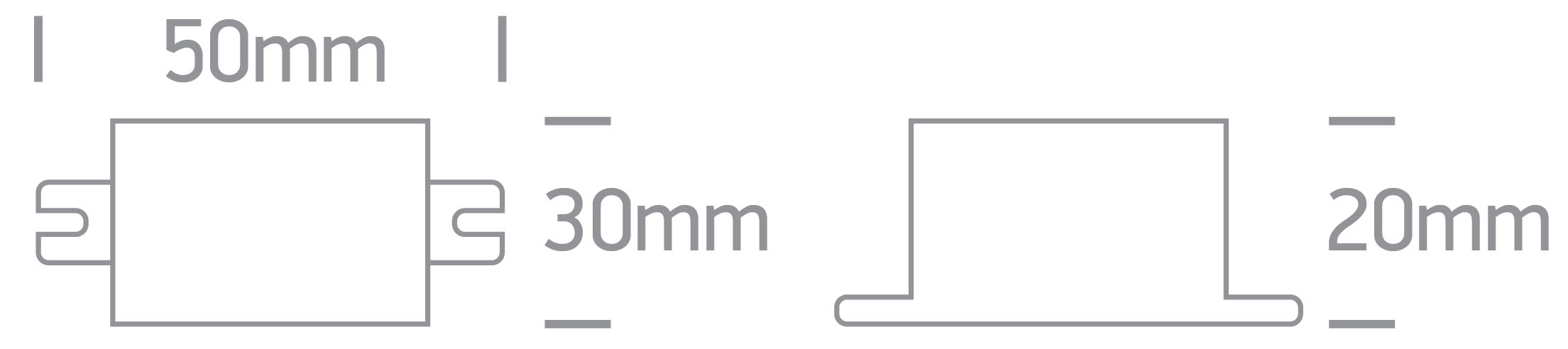

    Dimensions
    Downloads
    Product PDF Photo Download

    Physical Specification

    +
    Item Group
    New 2025 Edition 2
    Family
    Drivers
    Order Code
    89007T
    Material
    Plastic
    Shape
    Rectangular
    Length
    50mm
    Width
    30mm
    Height
    20mm
    Indoor
    Yes

    Electrical Characteristics

    +
    Gear
    Gear Type
    Led Driver
    Input Voltage
    220-240V
    50 Hz
    Yes
    60 Hz
    Yes
    Power (Watts)
    3,5-7W
    Power Factor
    0,8
    Constant Current
    Yes
    350mA
    10-22V
    IP Rating
    IP20
    Safety Class
    Dimmable
    Yes
    Dimmer type
    Triac
    Ambient Temp
    50°C
    Operating Temp
    80°C
    Housing Material
    Plastic
    Output Terminal
    Cable
    Fast Connector
    Yes
    Fast Connector Type
    One Light 350/500

    Packing Info

    +
    Pcs/Carton
    100
    Barcode
    5291889080664
    HS Code
    8504408390

    Certification & Warranty

    +
    Warranty
    5 years
    Wee Directive
    Yes
    Year in which the CE mark was affixed
    24
