23 Drivers > Marine Drivers for Yachts Constant current

89028AM

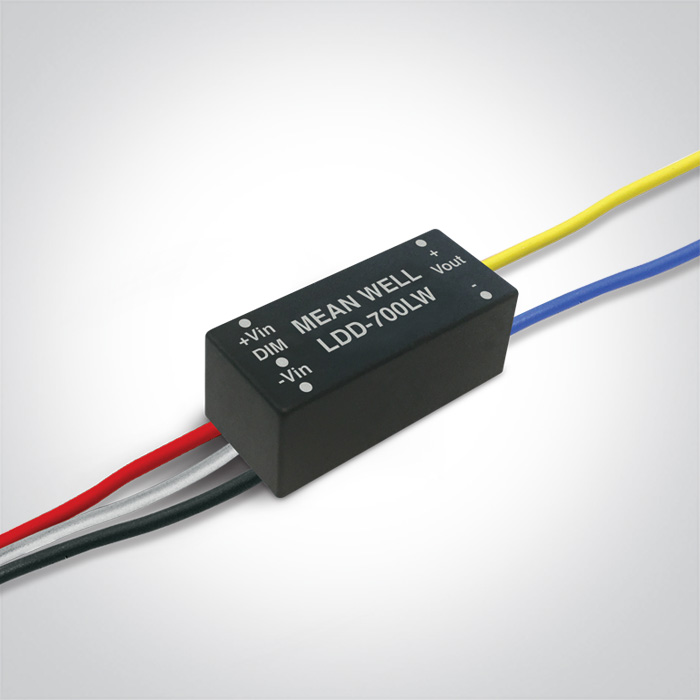

9-36V 700mA constant current PWM dimmable driver ideal for marine applications.

Requires 12-24V constant voltage driver.

Complies with standard EN61347-1 and any other specific standards.
Indoor
IP
CE

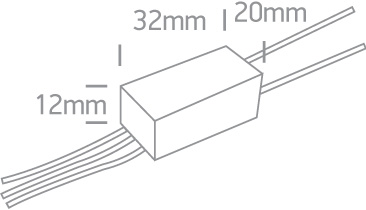

Dimensions
Downloads

Physical Specification

+
Item Group
23 Drivers
Family
Marine Drivers for Yachts Constant current
Order Code
89028AM
Material
Plastic
Shape
Rectangular
Length
32mm
Width
20mm
Height
12mm
Indoor
Yes

Electrical Characteristics

+
Gear
Gear Type
Led Controller
Input Voltage
9-36V DC
Power (Watts)
8,4W@12V 16,8W@24V 22,4W@36V
Constant Current
Yes
700mA
32V
IP Rating
IP20
Safety Class
Dimmable
Yes
Housing Material
Plastic
Output Terminal
Connector

Packing Info

+
Box Weight
0.004kg
Pcs/Carton
240
Barcode
5291889062745
HS Code
8504408390

Certification & Warranty

+
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
