23 Drivers > Adjustable Constant Current DALI Dimmable Range
89050TLD
50W Triac, DALI, Push to DIM & 1-10V LED driver
Adjustable output using DIP switches.
Complies with standard EN61347-1 and any other specific standards.
Complies with standard EN61347-1 and any other specific standards.

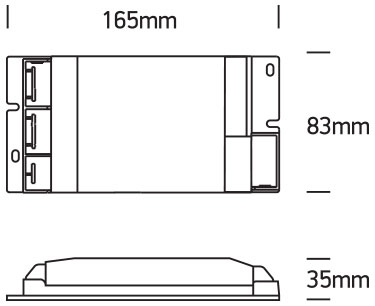

Dimensions
Downloads
Physical Specification
Item Group
23 Drivers
Family
Adjustable Constant Current DALI Dimmable Range
Order Code
89050TLD
Material
Plastic
Shape
Rectangular
Length
165mm
Width
83mm
Height
35mm
Indoor
Yes
Electrical Characteristics
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
Refer to table
Power Factor
0.95
Constant Current
Yes
200mA
8-48V
250mA
8-48V
300mA
8-48V
350mA
8-48V
400mA
8-48V
450mA
8-48V
500mA
8-48V
600mA
8-48V
700mA
8-48V
900mA
8-48V
1000mA
8-48V
1050mA
8-47V
1200mA
8-41V
1400mA
8-35V
1500mA
8-33V
Voltage Range
8-48V
Output
180mA
IP Rating
IP20
Safety Class
Dimmable
Yes
Dimmer type

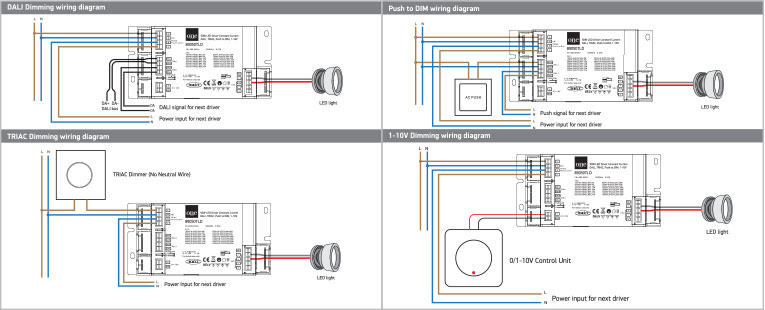

Triac, Dali, Push to Dim, 1-10V
Ambient Temp
-20~+45°C
Operating Temp
80°C
Housing Material
Plastic
Output Terminal
Cable
Fast Connector
Yes
Fast Connector Type
Other
Packing Info
Box Length
17,7cm
Box Width
8,8cm
Box Height
4cm
Box Weight
0.416kg
Pcs/Carton
36
Barcode
5291889070184
HS Code
8504408390
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
