24 Control & Dimming > 12-24V DALI, Push to Dim Controller
89100L
12-24V constant voltage Dali/Push to Dim dimmer.
Requires 12-24V constant voltage driver.
Complies with standard EN61347-1 and any other specific standards.
Requires 12-24V constant voltage driver.
Complies with standard EN61347-1 and any other specific standards.

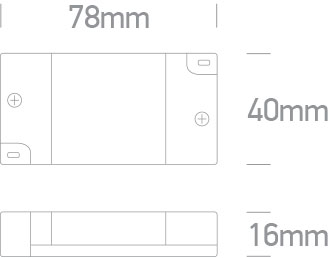

Dimensions
Downloads
Physical Specification
Item Group
24 Control & Dimming
Family
12-24V DALI, Push to Dim Controller
Order Code
89100L
Material
Plastic
Shape
Rectangular
Length
78mm
Width
40mm
Height
16mm
Indoor
Yes
Electrical Characteristics
Gear
Gear Type
Led Controller
Input Voltage
12-24V DC
Power (Watts)
75W@12V 150W@24V
Constant Voltage
Yes
12 V
Yes
24 V
Yes
IP Rating
IP20
Safety Class
Dimmable
Yes
Dimmer type
Dali, Push to Dim
Ambient Temp
50°C
Operating Temp
75°C
Housing Material
Plastic
Output Terminal
Connector
Packing Info
Box Weight
0.038kg
Pcs/Carton
200
Barcode
5291889056669
HS Code
8504408390
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
