22 Emergency Lights > Emergency LED Wall & Ceiling
89404

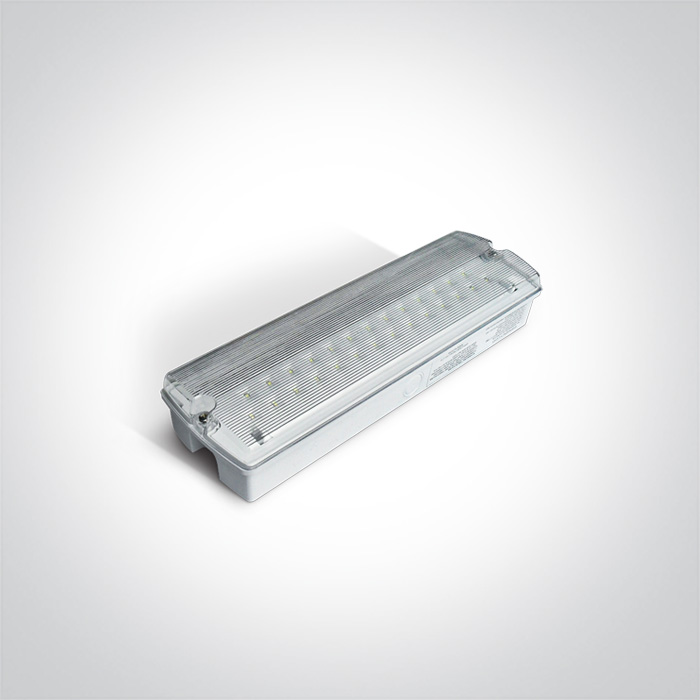

5W LED Wall and ceiling Exit sign, IP65.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

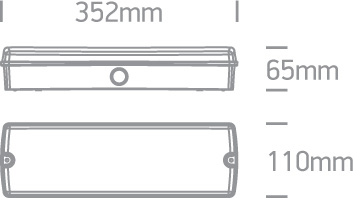

Dimensions
Downloads
Physical Specification
Item Group
22 Emergency Lights
Family
Emergency LED Wall & Ceiling
Order Code
89404
Colour
White
Material
Plastic
Shape
Rectangular
Length
352mm
Width
110mm
Height
65mm
Surface Ceiling
Yes
Surface Wall
Yes
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
5W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Power (Watts)
5W
IP Rating
IP65
Light Source
LED built in
LED Type
SMD 2835
LED Number
41
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
5W
Power Factor
0,9
Constant Current
Yes
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
0~40°C
Housing Material
Plastic
Output Terminal
Connector
Battery Capacity
1500mAh
Battery Voltage
3,2V
Operation Time
3Hrs
Charging Time
24Hrs
Maintained
Yes
Non Maintained
Yes
Illumination Data
Colour Temperature
6000K
Lumen Output
400lm
Light Efficiency
80lm/W
Illumination Diagram
Packing Info
Box Weight
0.725kg
Pcs/Carton
12
Barcode
5291889039044
HS Code
9405114090
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
16
