03 Recessed Spots Adjustable > The Trimless GU10 Range Round
11105UTR/W
Recessed Trimless adjustable MR16 spot with GU10 lamp holder.
Complies with standard EN60598-1 and any other specific standards.
Complies with standard EN60598-1 and any other specific standards.

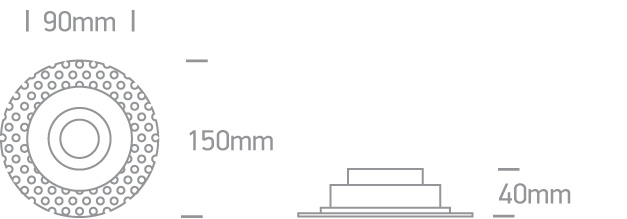

Dimensions
Downloads
Physical Specification
Item Group
03 Recessed Spots Adjustable
Family
The Trimless GU10 Range Round
Order Code
11105UTR/W
Colour
White
Material
Die Cast
Shape
Circular
Height
40mm
Diameter
150mm
Cutout Hole Diameter
105mm
Recessed trimmless ceiling
Yes
Depth Required
120mm
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
No
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
10W
IP Rating
IP20
Light Source
Replaceable lamp
Lamp Holder
GU10
Number of Lamps
1
Dimmable
N/A
Cable Length
20cm
F Mark
Illumination Data
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
15,5cm
Box Width
15,5cm
Box Height
5,2cm
Box Weight
0.385kg
Pcs/Carton
20
Carton Length
33cm
Carton Width
33cm
Carton Height
29cm
Carton Weight
7,7Kg
Barcode
5291889057185
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
