04 Recessed Spots Adjustable LED > The IP54 COB Outdoor/Bathroom Range
.jpg)

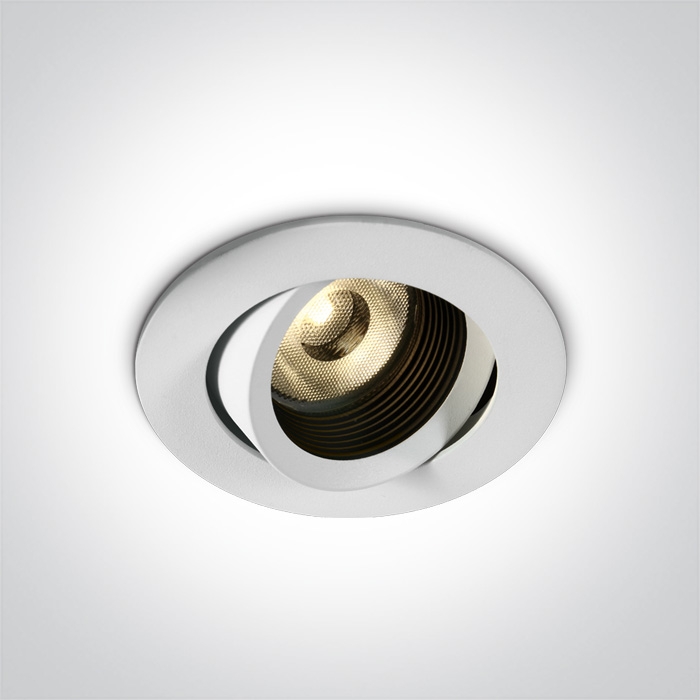

11113D/W/W
13W LED adjustable COB Extractable Range, IP54.
Requires 350mA driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 350mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
04 Recessed Spots Adjustable LED
Family
The IP54 COB Outdoor/Bathroom Range
Order Code
11113D/W/W
Colour
White
Material
Die Cast
Shape
Circular
Height
78mm
Diameter
90mm
Cutout Hole Diameter
80mm
Recessed Ceiling
Yes
Depth Required
110mm
Indoor
Yes
Outdoor
Yes
Adjustable
1 Direction
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
350mA
Safety Class
Power (Watts)
13W
IP Rating
IP54
Light Source
LED built in
LED Type
COB
LED Brand
Citizen
Cable Length
40cm
Fast Connector
One Light 350/500
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
1100lm
Light Efficiency
84,61lm/W
CRI
92
Beam Angle
38°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.347kg
Pcs/Carton
36
Barcode
5291889066903
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
