04 Recessed Spots Adjustable LED > The COB Recessed Cylinders

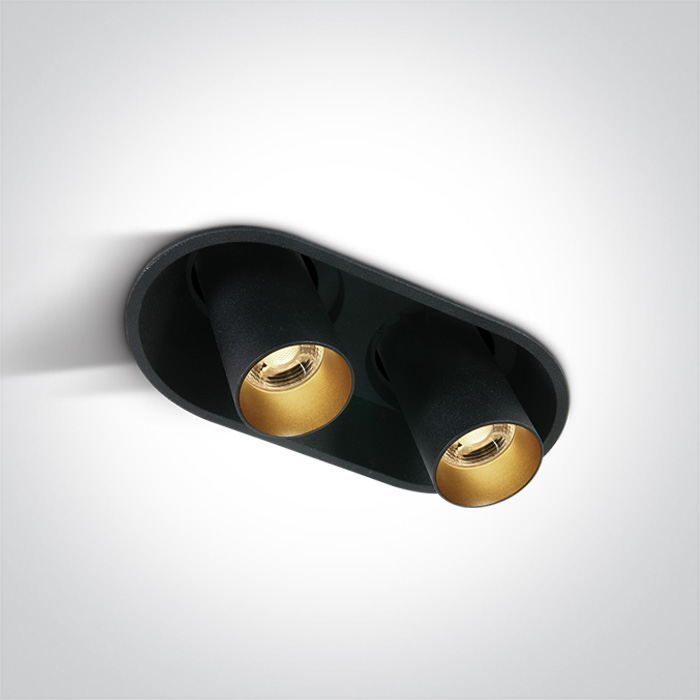

11207C/B/W
2x6,5W COB LED recessed adjustable spot, for general lighting
applications.
Requires 700mA constant current LED drivers.
Complies with standard EN60598-1 and any other specific standards.
Requires 700mA constant current LED drivers.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
04 Recessed Spots Adjustable LED
Family
The COB Recessed Cylinders
Order Code
11207C/B/W
Colour
Black
Material
Die Cast
Shape
Rectangular
Length
168mm
Width
90mm
Height
85mm
Cutout Hole Diameter
2x83mm
Recessed Ceiling
Yes
Depth Required
90mm
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
700mA
Voltage
9,3V
Safety Class
Power (Watts)
2x6,5W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Bridgelux
LED Number
1
Cable Length
40cm
Fast Connector
One Light 700
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
2x550lm
Light Efficiency
84lm/W
CRI
90
Beam Angle
36°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
17,5cm
Box Width
9,5cm
Box Height
10cm
Box Weight
0.558kg
Pcs/Carton
24
Barcode
5291889058403
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
