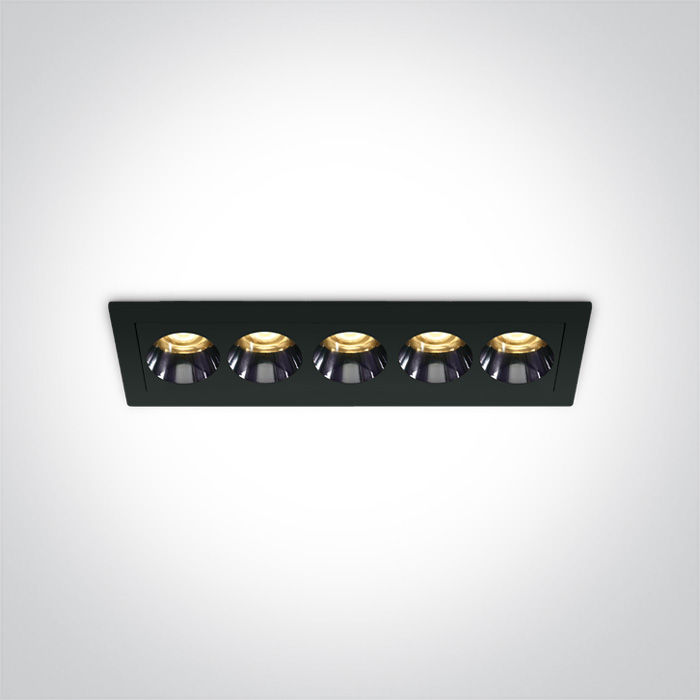

02 Recessed Spots Fixed LED > The Mirror Dark Light Range
50012H/B/W
12W Dark light recessed spot, IP20.
Complete with 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 700mA driver.
Complies with standard EN60598-1 and any other specific standards.

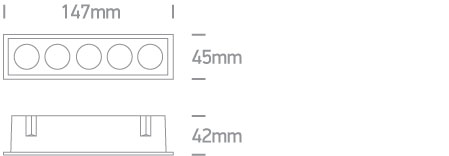

Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The Mirror Dark Light Range
Order Code
50012H/B/W
Colour
Black
Material
Aluminium
Shape
Rectangular
Length
147mm
Width
45mm
Height
42mm
Cutout Hole Width
140mm
Cutout Hole Height
36mm
Recessed Ceiling
Yes
Depth Required
80mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
12W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
Fitting
Input Type
Constant Current
Input Current
700mA
Voltage
16V
Safety Class
Power (Watts)
12W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 3535
LED Brand
Bridgelux
LED Number
5
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
7,7-11,9W
Power Factor
0,5
Constant Current
Yes
700mA
11-17V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
-20°C…+45°C
Operating Temp
75°C
Illumination Data
Colour Temperature
3000K
Lumen Output
840lm
Light Efficiency
70lm/W
CRI
90
Beam Angle
38°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.335kg
Pcs/Carton
40
Barcode
5291889074892
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
