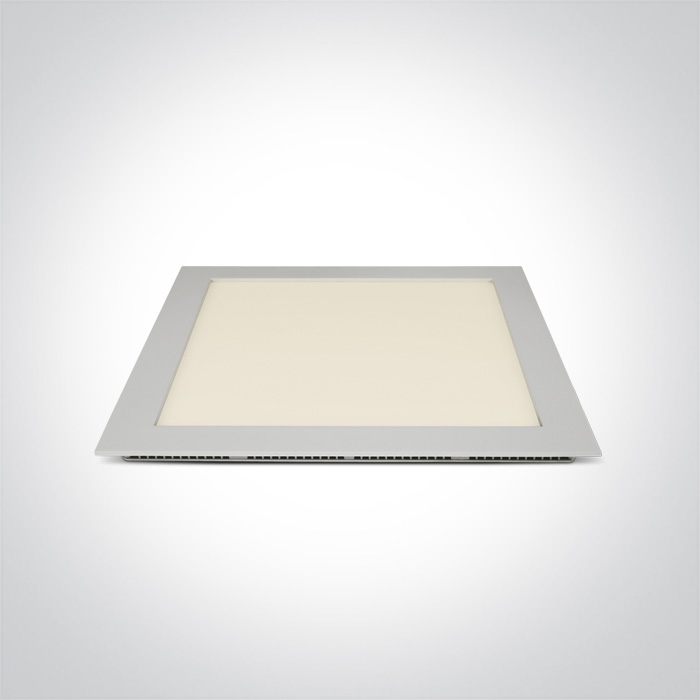

06 Downlights Fixed LED > The 16-30W Square Recessed Panels CCT V
50130FA/W/V
CCT Variable 30W slim downlight LED, IP20, ideal for commercial
applications such as offices, galleries and showrooms.
Supplied with 800mA non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with 800mA non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

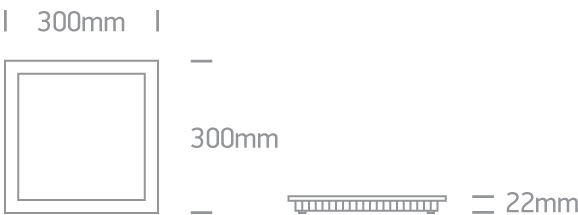

Dimensions
Downloads
Physical Specification
Item Group
06 Downlights Fixed LED
Family
The 16-30W Square Recessed Panels CCT V
Order Code
50130FA/W/V
Colour
White
Material
Die Cast
Diffuser Material
Acrylic
Shape
Rectangular
Length
300mm
Width
300mm
Height
22mm
Cutout Hole Width
280mm
Cutout Hole Height
280mm
Recessed Ceiling
Yes
Depth Required
50mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
30W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
800mA
Safety Class
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
LED Number
240
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
20-32W
Constant Current
Yes
800mA
25-40
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
50°C
Operating Temp
75°C
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K-4000K-5700K
Lumen Output
3000lm
Light Efficiency
100lm/W
CRI
80
Beam Angle
120°
Illumination Diagram
Packing Info
Box Weight
1.133kg
Pcs/Carton
12
Barcode
5291889078999
HS Code
9405119090
Energy Label
Certification & Warranty
Warranty
3 years
Average Lifetime
36000 hours
Wee Directive
Yes
Year in which the CE mark was affixed
23
