27 Fans > Ceiling Plafo Fans Transparent Blades
6300/BR/V

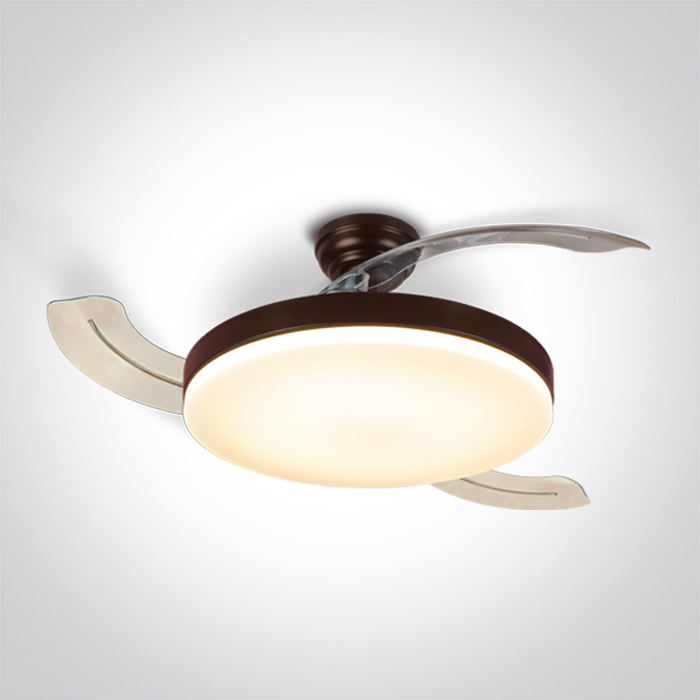

Rod mounted ceiling fan complete with PC diffuser and transparent PC blades. The blades are hidden and extend when the fan is turned on.
6 Speeds and Winter reverse mode.
Complete with remote control, 15cm and 30cm ceiling rods.
Complies with EN60598-1 and any other specific standards.
6 Speeds and Winter reverse mode.
Complete with remote control, 15cm and 30cm ceiling rods.
Complies with EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
27 Fans
Family
Ceiling Plafo Fans Transparent Blades
Order Code
6300/BR/V
Colour
Brown
Material
Metal
Diffuser Material
PC
Shape
Circular
Height
330mm
Diameter
470mm with blades closed / 1050mm with blades opened
Surface Ceiling
Yes
Indoor
Yes
Electrical Characteristics
Fans
Input Voltage
220-240V
Power (Watts)
32W
Safety Class
IP Rating
IP20
Flow Rate
71m³/min
Fan Power
25W
Service Value
2,8/W
Sound Power
40dB
Air Velocity
2,3meters/sec
RPM
255
Speeds
6
Illumination Data
Colour Temperature
3000K-4000K-5500K
Lumen Output
3500lm
Light Efficiency
109lm/w
CRI
85
Beam Angle
120
Illumination Diagram
Packing Info
Box Weight
6.800kg
Pcs/Carton
1
Barcode
5291889079262
HS Code
8414510090
Certification & Warranty
Warranty
3 years
Average Lifetime
54000Hrs L70B50
Year in which the CE mark was affixed
24
