09 Track Lights > Adjustable Shape Beam Zoomable
65668T/B/W

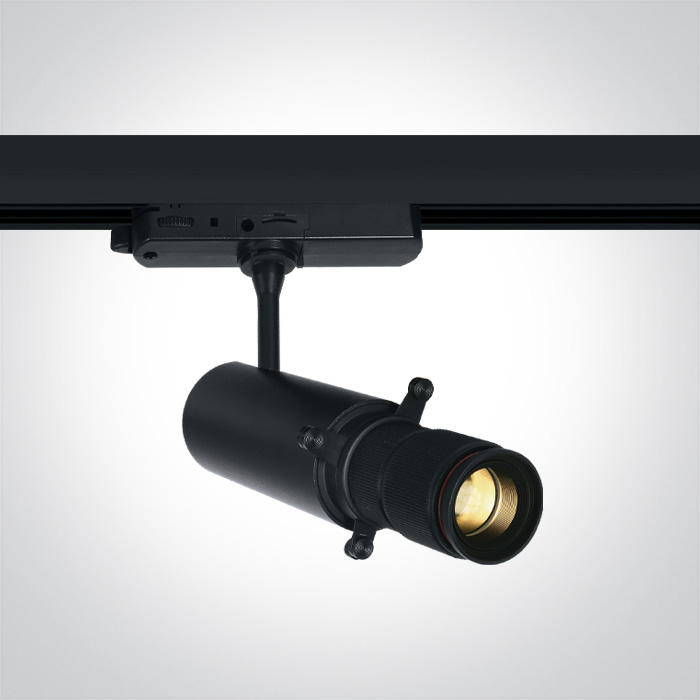

12W COB LED track spot with adjustable shape beam
Complete with 300mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 300mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
09 Track Lights
Family
Adjustable Shape Beam Zoomable
Order Code
65668T/B/W
Colour
Black
Material
Aluminium
Shape
Circular
Height
205mm
Diameter
47mm
Track mounted
Yes
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
12W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
Fitting
Input Type
Constant Current
Input Current
300mA
Voltage
38V
Safety Class
Power (Watts)
11,4W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Cree
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
4,8-12W
Power Factor
0,9
Constant Current
Yes
300mA
16-40V
IP Rating
IP20
Safety Class
Dimmable
No
Illumination Data
Colour Temperature
3000K
Lumen Output
350lm
Light Efficiency
29,17lm/W
CRI
90
Illumination Diagram
Packing Info
Box Weight
0.680kg
Pcs/Carton
10
Barcode
5291889076025
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
