08 Strips & Profiles > The Outdoor RGB & RGBW Strip 24V
.jpg)
7830W/RGB
Waterproof RGB flexible LED light strip, with SMD5050 LEDs, 60LEDs/meter, 14,4W/meter.Supplied in 5 meters roll with white PCB and double adhesive tape for a better fixing, IP68.

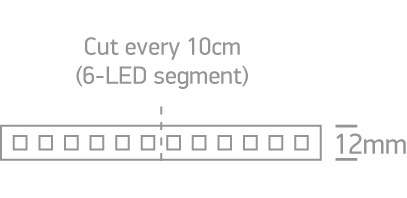

Can be cut every 10cm (6-LED segment).
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Can be cut every 10cm (6-LED segment).
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
08 Strips & Profiles
Family
The Outdoor RGB & RGBW Strip 24V
Order Code
7830W/RGB
Shape
Rectangular
Length
5000mm
Width
12mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Indoor
Yes
Outdoor
Yes
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
24V DC
Safety Class
Power (Watts)
14,4W/m
IP Rating
IP68
Light Source
LED built in
LED Type
SMD 5050
LED Brand
Refond
LED Number
60Leds/m
F Mark
Illumination Data
Colour Temperature
RGB
Illumination Diagram
Packing Info
Box Length
26cm
Box Width
25cm
Box Height
2cm
Box Weight
0.577kg
Pcs/Carton
40
Barcode
5291889017714
HS Code
9405423100
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
13
