New 2025 Edition 2 > Emergency Lights

89001/EME

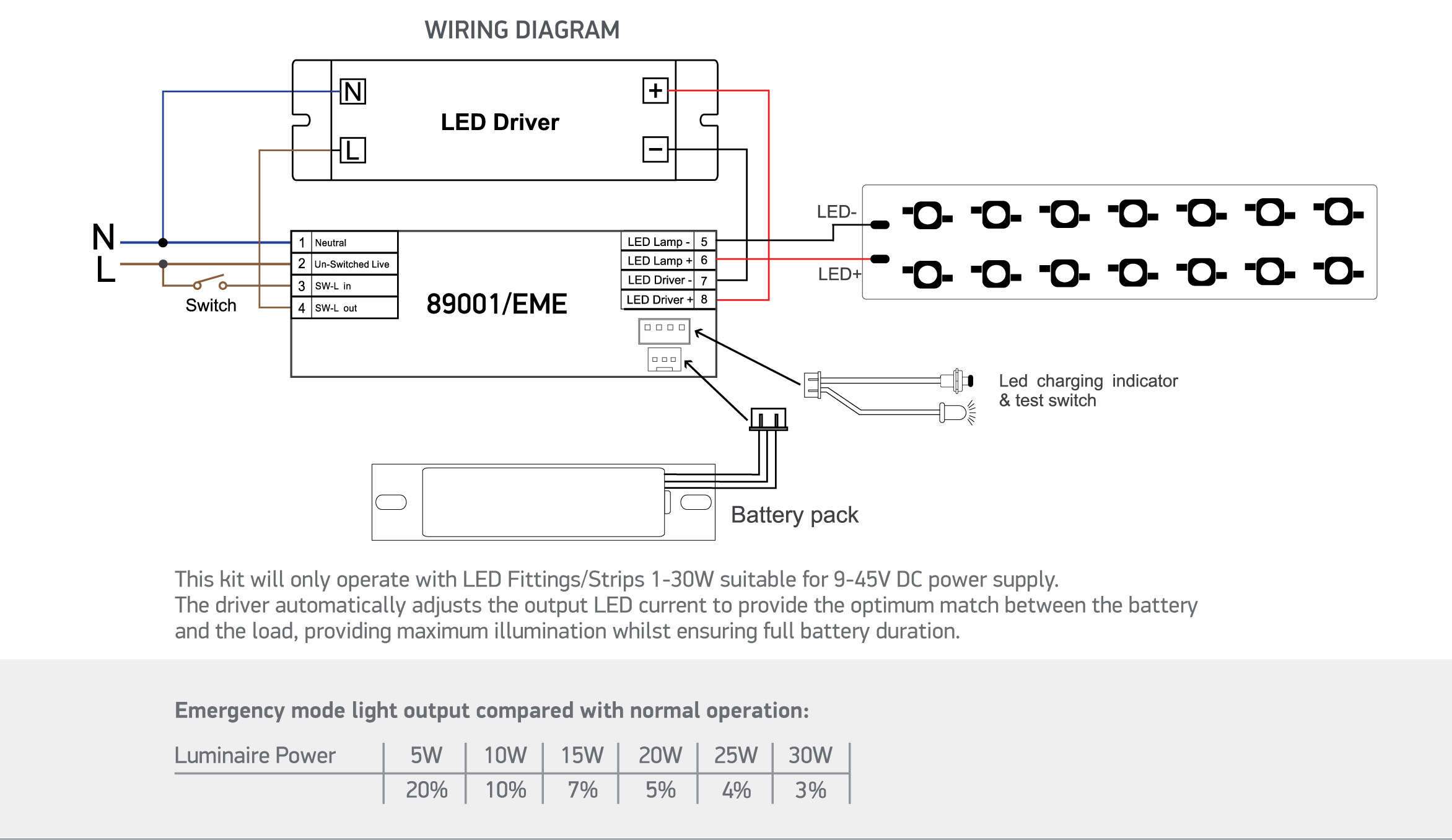

Wiring Diagram
/Assets/materials/files/diagrams/89001-WIRING-DIAGRAM.jpg
89001/EME

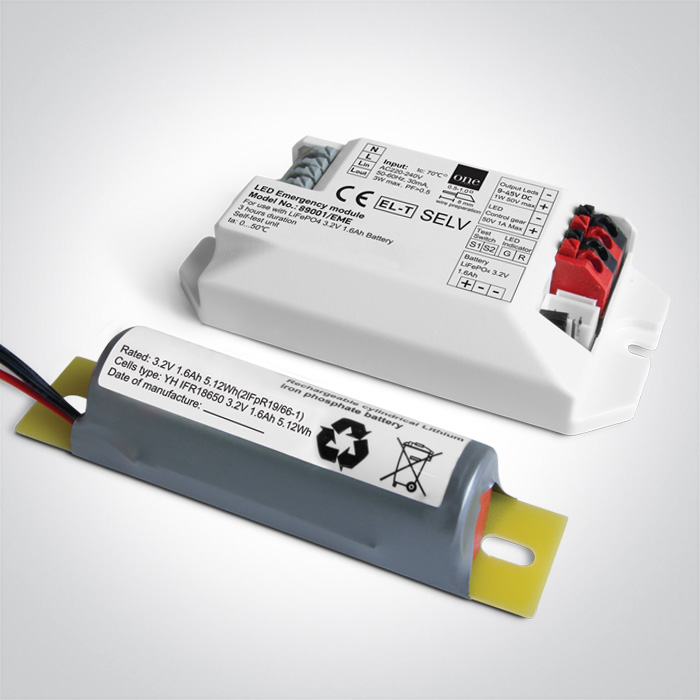

1W Emergency kit for 1-30W LED fittings, for built-in installation.

This kit will operate with LED fittings / strips suitable for a 9-45V DC power supply.

Emergency 3 hours maintained.

Supplied complete with LiFePO4 3,2V 1,6Ah battery.

Complies with standard EN61347-1 and any other specific standards.
Indoor
IP
CE

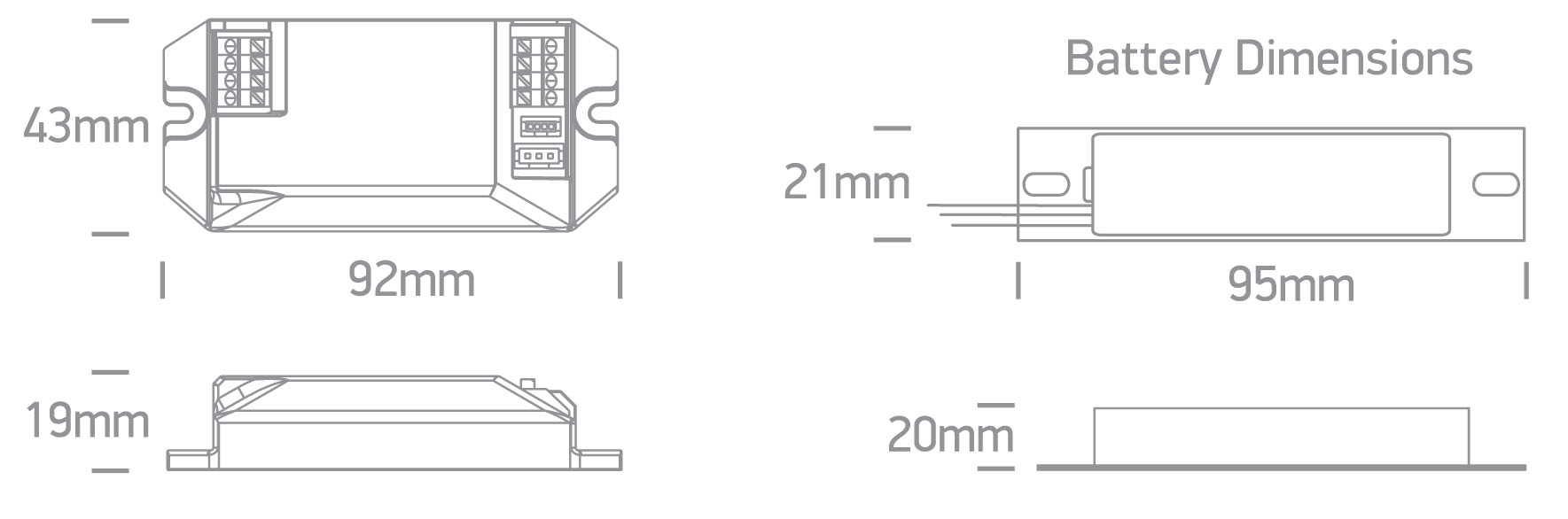

Dimensions
Downloads

Physical Specification

+
Item Group
New 2025 Edition 2
Family
Emergency Lights
Order Code
89001/EME
Material
Plastic
Shape
Rectangular
Indoor
Yes

Electrical Characteristics

+
Gear
Gear Type
Emergency Kit
Power (Watts)
1-30W
Voltage Range
9-45V DC
IP Rating
IP20
Safety Class
Dimmable
N/A
Housing Material
Plastic
Battery Capacity
1600mAh
Battery Voltage
3,2V
Operation Time
3 hours
Charging Time
24 hours
Maintained
Yes
Non Maintained
Yes

Packing Info

+
Box Weight
0.130kg
Pcs/Carton
50
Barcode
5291889081845
HS Code
8504408390

Certification & Warranty

+
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
24
